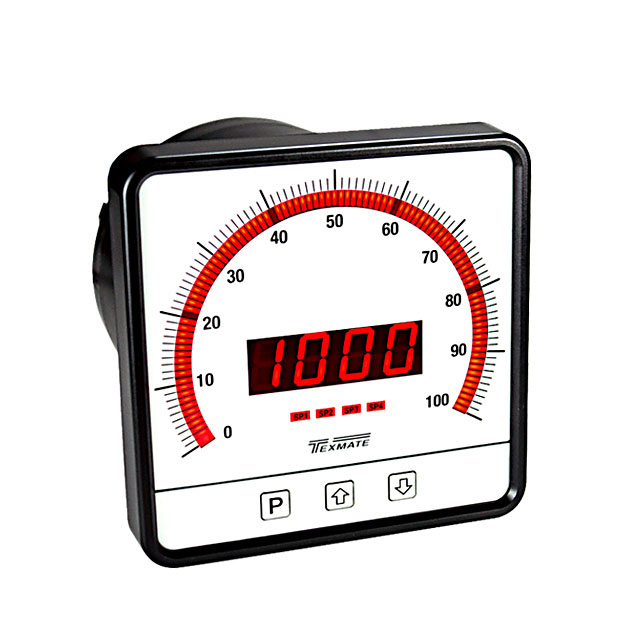

CL-B101D40HZ

Active

Texmate

SWITCHBOARD STYLE 0-9999 HZ CIRC

Search across all available documentation for this part.

Active

Texmate

SWITCHBOARD STYLE 0-9999 HZ CIRC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CL-B101D40HZ	CL-B101D Series

Display Characters - Height [z]	0.56 in	0.56 in
Display Characters - Height [z]	14.22 mm	14.22 mm
Display Type	LED - Red Characters, LED - Red Bar Graph	LED - Red Characters, LED - Red Bar Graph
Measuring Type	Frequency	Frequency, Thermocouple, RTD
Number of Characters Per Row	4	4
Output Type	Relay (2), Analog	Relay (2), Analog
Panel Cutout Dimensions [diameter]	97.77 mm	97.77 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Frequency Meter	Frequency Meter, Temperature Meter
Voltage - Supply [Max]	265 VAC, 300 VDC	265 - 300 VAC
Voltage - Supply [Min]	95 VDC, 85 VAC	85 - 95 VDC

SWITCHBOARD STYLE 0-9999 HZ CIRC

Part	Panel Cutout Dimensions [diameter]	Termination Style	Display Type	Type	Measuring Type	Output Type	Number of Characters Per Row	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Characters - Height [z]	Display Characters - Height [z]
Texmate CL-B101D40HZ	97.77 mm	Screw Terminal	LED - Red Bar Graph, LED - Red Characters	Frequency Meter	Frequency	Analog, Relay (2)	4	85 VAC, 95 VDC	265 VAC, 300 VDC	0.56 in	14.22 mm
Texmate CL-B101D40-TC	97.77 mm	Screw Terminal	LED - Red Bar Graph, LED - Red Characters	Temperature Meter	Thermocouple	Analog, Relay (2)	4	85 VAC, 95 VDC	265 VAC, 300 VDC	0.56 in	14.22 mm
Texmate CL-B101D40-RTD	97.77 mm	Screw Terminal	LED - Red Bar Graph, LED - Red Characters	Temperature Meter	RTD	Analog, Relay (2)	4	85 VAC, 95 VDC	265 VAC, 300 VDC	0.56 in	14.22 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 846.00

General part information

Frequency Meter LED - Red Characters, LED - Red Bar Graph Display Panel Mount
