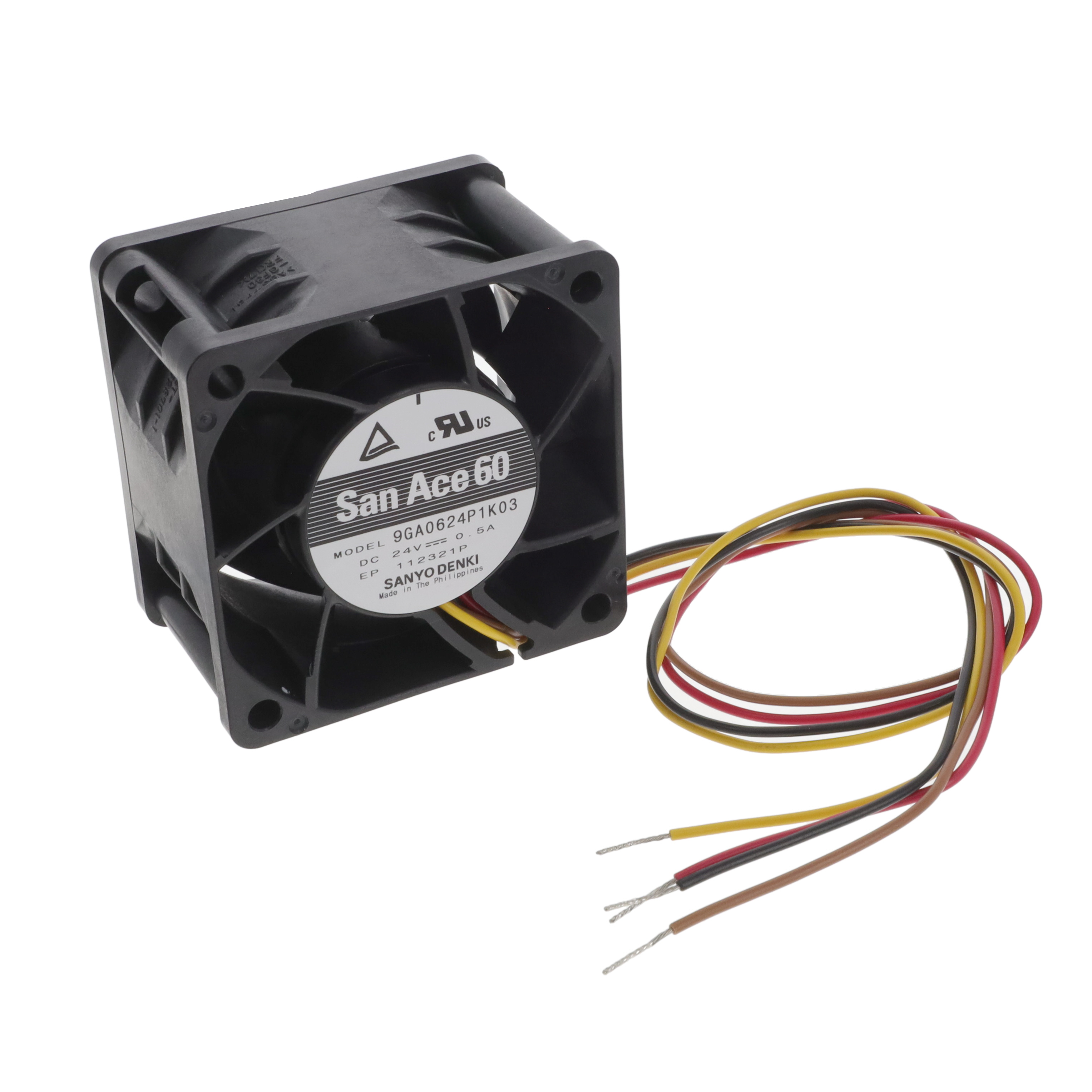

Specification	9GA0624P1K03

Air Flow	53 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating	0.5 A
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach)
Lifetime	Varies Based on Temperature
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-4 °F
Power (Watts)	12 W
RPM	14800 RPM
Size / Dimension Height	60 mm
Size / Dimension Length	60 mm
Size / Dimension Shape	Square
Static Pressure	2.4 in H2O
Termination	4 Wire Leads
Termination Leads Count	4 leads
Termination Type	Wire Leads
Voltage - Rated	24 VAC
Voltage Range (Max)	26.4 VDC
Voltage Range (Min)	21.6 VDC
Weight	0.287 lb
Width	38 mm

9GA0624 Series

Part	Weight	RPM	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Operating Temperature (Min)	Operating Temperature (Max)	Air Flow	Noise	Approval Agency	Fan Type	Width	Termination Leads Count	Termination Type	Termination	Voltage - Rated	Power (Watts)	Static Pressure	Bearing Type	Features	Lifetime	Material - Blade	Material - Frame	Voltage Range (Max)	Voltage Range (Min)	Current Rating	Lifetime
Sanyo Denki America Inc. 9GA0624M6002	0.156 lb	2700 RPM	60 mm	Square	60 mm	-4 °F	158 °F	12 CFM	18 dB	CSA TUV UL	Tubeaxial	20 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	720 mW	0.08 in H2O	Ball	Locked Rotor Protection	60000 Hrs	Plastic	Plastic	26.4 VDC	21.6 VDC	30 mA
Sanyo Denki America Inc. 9GA0624H6002	0.156 lb	4100 RPM	60 mm	Square	60 mm	-4 °F	158 °F	18.4 CFM	30 dB	CSA TUV UL	Tubeaxial	20 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	960 mW	0.18 in H2O	Ball	Locked Rotor Protection	60000 Hrs	Plastic	Plastic	26.4 VDC	21.6 VDC	40 mA
Sanyo Denki America Inc. 9GA0624P1K03	0.287 lb	14800 RPM	60 mm	Square	60 mm	-4 °F	158 °F	53 CFM	59 dB	CSA TUV UL	Tubeaxial	38 mm	4 leads	Wire Leads	4 Wire Leads	24 VAC	12 W	2.4 in H2O	Ball	PWM Control Speed Sensor (Tach)		Plastic	Plastic	26.4 VDC	21.6 VDC	0.5 A	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0624P1K031	0.287 lb	14800 RPM	60 mm	Square	60 mm	-4 °F	158 °F	53 CFM	59 dB	CSA TUV UL	Tubeaxial	38 mm	4 leads	Wire Leads	4 Wire Leads	24 VAC	12 W	2.4 in H2O	Ball	PWM Control Speed Sensor (Tach)		Plastic	Plastic	26.4 VDC	21.6 VDC	0.5 A	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0624G6002	0.156 lb	6850 RPM	60 mm	Square	60 mm	-4 °F	158 °F	31.1 CFM	43 dB	CSA TUV UL	Tubeaxial	20 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	2.88 W	0.5 in H2O	Ball	Locked Rotor Protection		Plastic	Plastic	26.4 VDC	21.6 VDC	120 mA	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0624H6001	0.154 lb	4100 RPM	60 mm	Square	60 mm	14 °F	158 °F	18.4 CFM	29 dB	CSA TUV UL	Tubeaxial	20 mm	3	Wire Leads	3 Wire Leads	24 VAC	960 mW	0.18 in H2O	Ball	Speed Sensor (Tach)	60000 Hrs	Plastic	Plastic	26.4 VDC	21.6 VDC	40 mA
Sanyo Denki America Inc. 9GA0624J1011	0.287 lb	17500 RPM	60 mm	Square	60 mm	-20 °C	60 °C	62 CFM	63 dB	CSA TUV UL	Tubeaxial	38 mm	3	Wire Leads	3 Wire Leads	24 VAC	18 W	3.3 in H2O	Ball	Locked Rotor Protection Speed Sensor (Tach)		Plastic	Plastic	25.2 VDC	21.6 VDC	0.75 A	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0624J102	0.287 lb	17500 RPM	60 mm	Square	60 mm	-20 °C	60 °C	62 CFM	63 dB	CSA TUV UL	Tubeaxial	38 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	18 W	3.3 in H2O	Ball	Locked Rotor Protection		Plastic	Plastic	25.2 VDC	21.6 VDC	0.75 A	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0624J1021	0.287 lb	17500 RPM	60 mm	Square	60 mm	-20 °C	60 °C	62 CFM	63 dB	CSA TUV UL	Tubeaxial	38 mm	2 leads	Wire Leads	2 Wire Leads	24 VAC	18 W	3.3 in H2O	Ball	Locked Rotor Protection		Plastic	Plastic	25.2 VDC	21.6 VDC	0.75 A	Varies Based on Temperature
Sanyo Denki America Inc. 9GA0624P1J031	0.287 lb	17500 RPM	60 mm	Square	60 mm	-20 °C	60 °C	62 CFM	63 dB	CSA TUV UL	Tubeaxial	38 mm	4 leads	Wire Leads	4 Wire Leads	24 VAC	18 W	3.33 in H2O	Ball	PWM Control Speed Sensor (Tach)		Plastic	Plastic	26.4 VDC	21.6 VDC	0.75 A	Varies Based on Temperature
