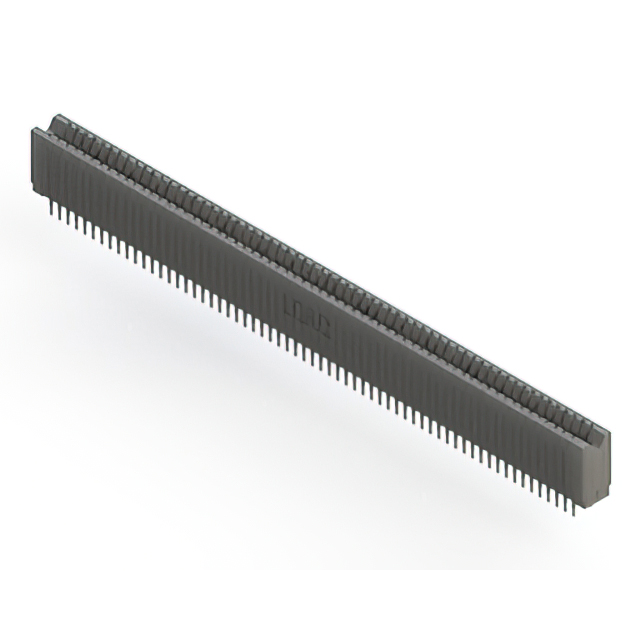

Specification	745-126-520-206

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	63, 126
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2 rows

745-126 Series

Part	Card Thickness (Min)	Card Thickness (Max)	Number of Rows	Termination	Contact Finish Thickness	Contact Material	Pitch	Color	Number of Positions	Card Type	Read Out	Gender	Contact Finish	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Material - Insulation	Termination Rows
EDAC Inc. 745-126-525-206	0.054 in	0.07 in	2	Press-Fit	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
EDAC Inc. 745-126-522-201	0.054 in	0.07 in	2	Press-Fit	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
EDAC Inc. 745-126-525-201	0.054 in	0.07 in	2	Press-Fit	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
EDAC Inc. 745-126-545-206	0.054 in	0.07 in	2	Press-Fit	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
EDAC Inc. 745-126-540-201	0.054 in	0.07 in	2	Press-Fit Wire Wrap	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
EDAC Inc. 745-126-520-201	0.054 in	0.07 in	2	Press-Fit	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
EDAC Inc. 745-126-522-206	0.054 in	0.07 in	2	Press-Fit	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
EDAC Inc. 745-126-540-206	0.054 in	0.07 in	2	Press-Fit Wire Wrap	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
EDAC Inc. 745-126-520-206	0.054 in	0.07 in	2	Press-Fit	30 µin	Copper Alloy	0.1 in	Black	63 126	Dual Edge Non Specified	Dual	Female	Gold	Through Hole	-40 °C	105 °C	Cantilever	Polyester Thermoplastic	2 rows
