3-822516-5

Obsolete

TE Connectivity AMP Connectors

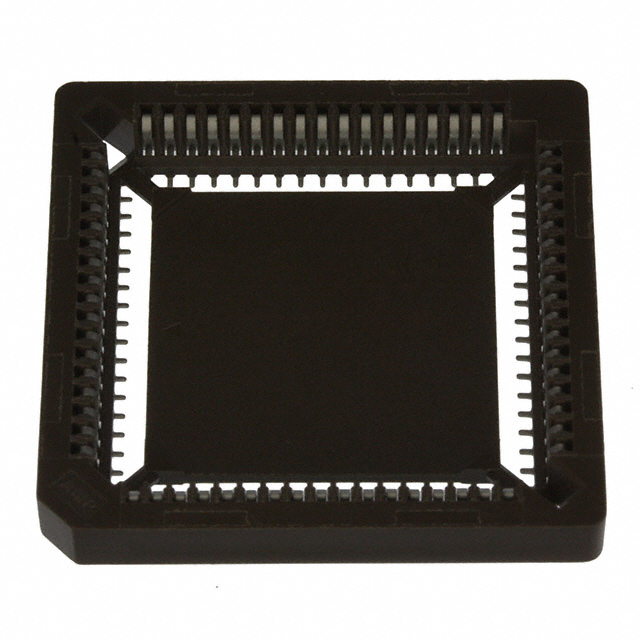

CONN SOCKET PLCC 68POS TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-822516-5

Obsolete

TE Connectivity AMP Connectors

CONN SOCKET PLCC 68POS TIN-LEAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

822516 Series

68 (4 x 17) Pos PLCC Socket Tin-Lead Surface Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-822516-5	822516 Series

Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Material - Mating	Phosphor Bronze	Phosphor Bronze
Contact Material - Post	Phosphor Bronze	Phosphor Bronze
Features	Closed Frame	Closed Frame
Housing Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount
Number of Positions or Pins (Grid)	-	28 - 44
Number of Positions or Pins (Grid)	-	4 - 11
Number of Positions or Pins (Grid) [custom]	4	4
Number of Positions or Pins (Grid) [custom]	68	68
Number of Positions or Pins (Grid) [custom]	17	7 - 17
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Pitch - Post	1.27 mm	1.27 mm
Pitch - Post	0.05 in	0.05 in
Termination	Solder	Solder
Type	PLCC	PLCC

822516 Series

CONN SOCKET PLCC 84POS TIN

Part	Pitch - Mating	Pitch - Mating	Contact Material - Post	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Termination	Contact Finish - Post	Pitch - Post	Pitch - Post	Material Flammability Rating	Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Housing Material	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]
TE Connectivity AMP Connectors 3-822516-6	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic
TE Connectivity AMP Connectors 822516-4	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic
TE Connectivity AMP Connectors 822516-2	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic	4	28	7
TE Connectivity AMP Connectors 822516-7	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic		32
TE Connectivity AMP Connectors 3-822516-4	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic
TE Connectivity AMP Connectors 822516-6	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic
TE Connectivity AMP Connectors 3-822516-5	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic	4		17	68	Tin-Lead
TE Connectivity AMP Connectors 822516-1	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic		44				4, 11
TE Connectivity AMP Connectors 3-822516-1	0.05 in	1.27 mm	Phosphor Bronze	Phosphor Bronze	2.54 µm	100 µin	Surface Mount	Solder	Tin	1.27 mm	0.05 in	UL94 V-0	PLCC	Closed Frame	2.54 çm	100 çin	Thermoplastic		44				4, 11
