Q-1U02W0003036i

Active

Amphenol Custom Cable

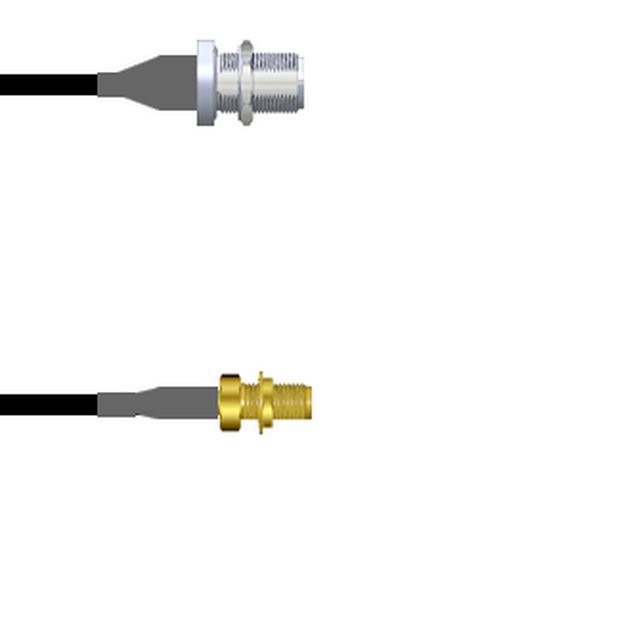

COAX CBL SMA TO N-TYPE 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U02W0003036i

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U02W0003036i

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1U02W0 Series

Part	2nd Connector Mounting Feature	2nd Contact Gender	2nd Connector	Cable Type	Overall Impedance	1st Connector	Frequency - Max [Max]	1st Contact Gender	1st Connector Mounting Feature	2nd Connector Mounting Type	1st Connector Mounting Type	Style	Features	Color	Length	Length	Length
Amphenol Custom Cable Q-1U02W0005009i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-316	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Copper	9 "	228.6 mm
Amphenol Custom Cable Q-1U02W0005084i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-316	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Copper	84 in	2.1 m	7 ft
Amphenol Custom Cable Q-1U02W0005060i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-316	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Copper	5 '	1.5 m	5 ft
Amphenol Custom Cable Q-1U02W0005036i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-316	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Copper	36 in	91.44 cm
Amphenol Custom Cable Q-1U02W0003003i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-174	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Black	3 in	76.2 mm
Amphenol Custom Cable Q-1U02W0003036i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-174	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Black	36 in	91.44 cm
Amphenol Custom Cable Q-1U02W0005048i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-316	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Copper	48 in	1200 mm	4 ft
Amphenol Custom Cable Q-1U02W00052.5M	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-316	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Copper	98.4 in	2.5 m	8.2 '
Amphenol Custom Cable Q-1U02W0005012i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-316	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Copper	12 "	304.8 mm
Amphenol Custom Cable Q-1U02W0005024i	Bulkhead - Front Side Nut	Female	N-Type Jack	RG-316	50 Ohms	SMA Jack	11 GHz	Female	Bulkhead - Front Side Nut	Panel Mount	Panel Mount	SMA to N-Type	Shielded	Copper	24 "	609.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 116.46
		25	$ 114.23
		50	$ 112.01
		100	$ 109.79
		250	$ 107.56

Description

General part information

Q-1U02W0 Series

Cable Assembly Coaxial SMA to N-Type RG-174 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
