1EDI3023ASXUMA1

Active

Infineon Technologies

GATE DRIVER, IGBT, HIGH SIDE, PG-DSO-20 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Infineon Technologies

GATE DRIVER, IGBT, HIGH SIDE, PG-DSO-20 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	1EDI3023ASXUMA1

Approval Agency	UL, VDE
Common Mode Transient Immunity (Min) [Min]	150 kV/µs
Current - Output High, Low [custom]	12 A
Current - Output High, Low [custom]	12 A
Current - Peak Output	12 A
Grade	Automotive
Mounting Type	Surface Mount
Number of Channels	1
Package / Case	20-BFSOP
Package / Case [custom]	7.5 mm
Package / Case [x]	0.295 in
Propagation Delay tpLH / tpHL (Max) [Max]	120 ns
Pulse Width Distortion (Max) [Max]	20 ns
Qualification	AEC-Q100
Rise / Fall Time (Typ)	55 ns
Rise / Fall Time (Typ) [Max]	45 ns
Supplier Device Package	PG-DSO-20-91
Technology	Magnetic Coupling
Voltage - Isolation	5700 Vrms
Voltage - Output Supply [Max]	5.5 V
Voltage - Output Supply [Min]	3 V

GATE DRIVER, IGBT, HIGH SIDE, PG-DSO-20 ROHS COMPLIANT: YES

Part	Current - Peak Output	Qualification	Technology	Rise / Fall Time (Typ) [Max]	Rise / Fall Time (Typ)	Approval Agency	Propagation Delay tpLH / tpHL (Max) [Max]	Number of Channels	Pulse Width Distortion (Max) [Max]	Package / Case [x]	Package / Case [custom]	Package / Case	Grade	Common Mode Transient Immunity (Min) [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Mounting Type	Supplier Device Package	Voltage - Output Supply [Max]	Voltage - Output Supply [Min]	Voltage - Isolation
Infineon Technologies 1EDI3023ASXUMA1	12 A	AEC-Q100	Magnetic Coupling	45 ns	55 ns	UL, VDE	120 ns	1	20 ns	0.295 in	7.5 mm	20-BFSOP	Automotive	150 kV/µs	12 A	12 A	Surface Mount	PG-DSO-20-91	5.5 V	3 V	5700 Vrms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

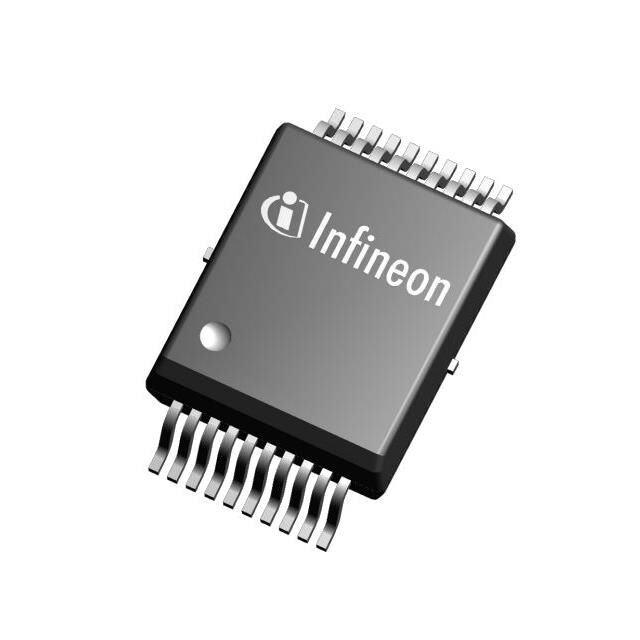

12A Gate Driver Magnetic Coupling 5700Vrms 1 Channel PG-DSO-20-91
