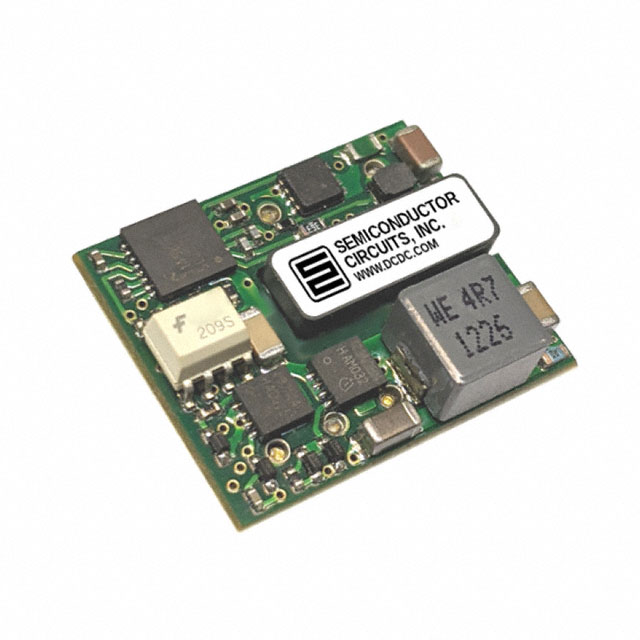

CPZ3B48N

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 12V 36W

Search across all available documentation for this part.

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 12V 36W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CPZ3B48N	CPZ3B48 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	TUV	TUV
Control Features	Active Low, Enable	Active Low, Enable, Active High
Current - Output (Max) [Max]	3 A	3 A
Features	Remote On/Off, Adjustable Output, Remote Sense	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Thirty-Second Brick	Thirty-Second Brick
Power (Watts)	36 W	36 W
Size / Dimension [x]	0.94 in	0.94 in
Size / Dimension [x]	23.9 mm	23.9 mm
Size / Dimension [y]	19.8 mm	19.8 mm
Size / Dimension [y]	0.78 in	0.78 in
Size / Dimension [z]	8.9 mm	8.9 mm
Size / Dimension [z]	0.35 "	0.35 "
Supplier Device Package	Thirty-Second Brick	Thirty-Second Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	12 V	12 V

DC DC CONVERTER 12V 36W

Part	Supplier Device Package	Package / Case	Voltage - Input (Max) [Max]	Mounting Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]	Applications	Type	Voltage - Output 1	Voltage - Isolation	Approval Agency	Features	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Semiconductor Circuits, Inc. CPZ3B48N	Thirty-Second Brick	Thirty-Second Brick	75 V	Through Hole	Active Low, Enable	85 °C	-40 °C	36 W	3 A	ITE (Commercial)	Isolated Module	12 V	1.5 kV	TUV	Adjustable Output, Remote On/Off, Remote Sense	36 V	1	8.9 mm	19.8 mm	0.35 "	0.78 in	0.94 in	23.9 mm
Semiconductor Circuits, Inc. CPZ3B48P	Thirty-Second Brick	Thirty-Second Brick	75 V	Through Hole	Active High, Enable	85 °C	-40 °C	36 W	3 A	ITE (Commercial)	Isolated Module	12 V	1.5 kV	TUV	Adjustable Output, Remote On/Off, Remote Sense	36 V	1	8.9 mm	19.8 mm	0.35 "	0.78 in	0.94 in	23.9 mm
Semiconductor Circuits, Inc. CPZ3B48NS	Thirty-Second Brick	Thirty-Second Brick	75 V	Surface Mount	Active Low, Enable	85 °C	-40 °C	36 W	3 A	ITE (Commercial)	Isolated Module	12 V	1.5 kV	TUV	Adjustable Output, Remote On/Off, Remote Sense	36 V	1	8.9 mm	19.8 mm	0.35 "	0.78 in	0.94 in	23.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 3A 36V - 75V Input
