76212WS 008100

Active

Belden Inc.

CABLE 12COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	76212WS 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	10
Conductor Strand [diameter]	34 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.31 mm
Jacket (Insulation) Diameter [diameter]	0.327 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Spiral
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Material	Length [x]	Length [x]	Shield Type	Jacket Color	Jacket (Insulation) Material	Wire Gauge	Cable Type	Conductor Strand [diameter]	Conductor Strand [custom]	Voltage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Features	Shield Coverage	Number of Conductors	Length	Spool Size	Spool Size
Belden Inc. 76212WS 008100	Aluminum Copper Tinned	30.5 m	100 ft	Foil Spiral	Chrome	Poly-Vinyl Chloride (PVC)	24 AWG	Multi-Conductor	34 AWG	10	300 V	Copper Tinned	8.31 mm	0.327 in	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Oil Resistant	90 % 100 %	12
Belden Inc. 76212WS 0081000	Aluminum Copper Tinned			Foil Spiral	Chrome	Poly-Vinyl Chloride (PVC)	24 AWG	Multi-Conductor	34 AWG	10	300 V	Copper Tinned	8.31 mm	0.327 in	0.04 in	1.016 mm	Poly-Vinyl Chloride (PVC)	Oil Resistant	90 % 100 %	12	Enter Number of Feet in Order Quantity	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 6.36

General part information

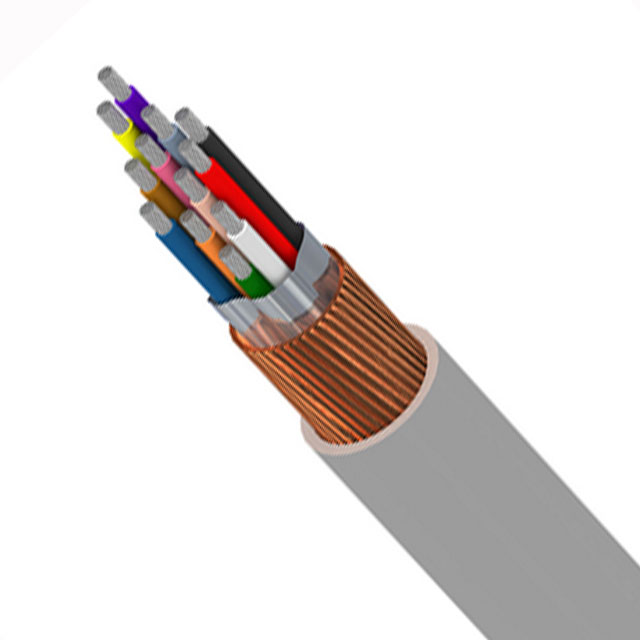

12 Conductor Multi-Conductor Cable Chrome 24 AWG Foil, Spiral 100.0' (30.5m)
