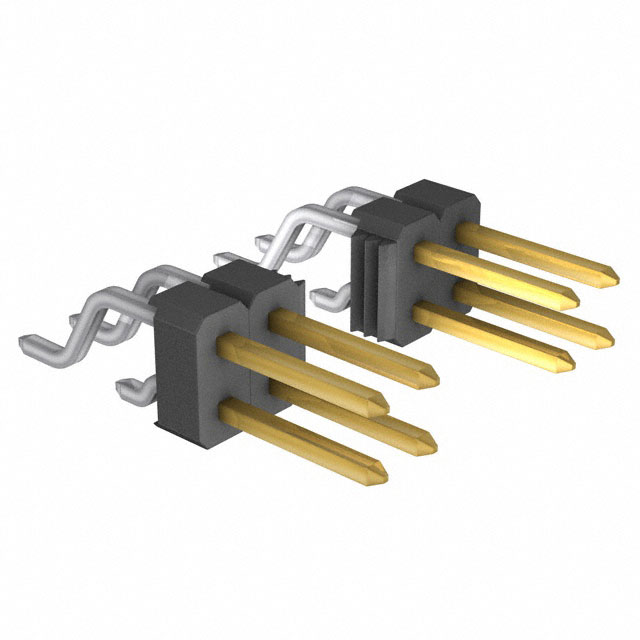

961254-5900-AR-PT

Obsolete

3M (TC)

CONN HEADER SMD R/A 54POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

961254-5900-AR-PT

Obsolete

3M (TC)

CONN HEADER SMD R/A 54POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	961254-5900-AR-PT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	0.28 in
Contact Length - Mating	7.11 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

961254 Series

Part	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Fastening Type	Pitch - Mating	Pitch - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Finish - Post	Number of Rows	Connector Type	Material Flammability Rating	Termination	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Finish - Mating	Insulation Material	Shrouding	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height
3M (TC) 961254-6700-AR-PT	Black	Copper Alloy	Flash	Push-Pull	0.1 in	2.54 mm	Pick and Place	-25 °C	105 ░C	2.54 mm	0.1 in	Surface Mount	All	2 A	Male Pin	0.098 in	2.5 mm	Tin	2	Header	UL94 V-0	Solder	54	1 çm	39.4 çin	Square	Gold	Thermoplastic	Unshrouded	6.6 mm	0.26 in
3M (TC) 961254-6700-AR-PR	Black	Copper Alloy	Flash	Push-Pull	0.1 in	2.54 mm	Pick and Place	-25 °C	105 ░C	2.54 mm	0.1 in	Surface Mount	All	2 A	Male Pin	0.098 in	2.5 mm	Tin	2	Header	UL94 V-0	Solder	54	1 çm	39.4 çin	Square	Gold	Thermoplastic	Unshrouded	6.6 mm	0.26 in
3M (TC) 961254-6804-AR	Black	Copper Alloy	Flash	Push-Pull	0.1 in	2.54 mm		-25 °C	105 ░C	2.54 mm	0.1 in	Through Hole	All	2 A	Male Pin	0.098 in	2.5 mm	Tin	2	Header	UL94 V-0	Solder	54	1 çm	39.4 çin	Square	Gold	Thermoplastic	Unshrouded			0.496 in	12.6 mm	0.13 in	3.3 mm	6.8 mm	0.268 in
3M (TC) 961254-5900-AR-PT	Black	Copper Alloy	Flash	Push-Pull	0.1 in	2.54 mm	Pick and Place	-25 °C	105 ░C	2.54 mm	0.1 in	Surface Mount Right Angle	All	2 A	Male Pin			Tin	2	Header	UL94 V-0	Solder	54	1 çm	39.4 çin	Square	Gold	Thermoplastic	Unshrouded							7.11 mm	0.28 in	0.197 in	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

961254 Series

Connector Header Surface Mount, Right Angle 54 position 0.100" (2.54mm)
