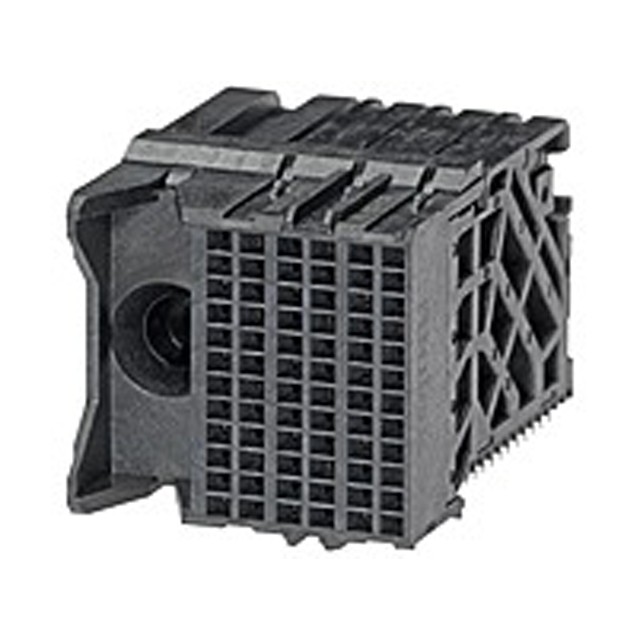

Specification	0768503006

Color	Black
Connector Style	Guide Left, Impact
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	30 µin
Differential Pairs (Typical)	24
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	6
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.053 in
Termination	Press-Fit
Voltage Rating	30 V

076850 Series

Part	Number of Positions Loaded	Connector Style	Features	Mounting Type	Contact Finish Thickness	Termination	Differential Pairs (Typical)	Pitch	Contact Finish	Number of Positions	Number of Rows	Connector Type	Number of Columns	Color	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating
Molex 0768505006	All	Guide Right Impact	Board Guide	Board Edge Right Angle Through Hole	30 µin	Press-Fit	24	0.053 in	Gold	72	12	Female Sockets Receptacle	6	Black	30 V	-55 °C	85 °C	UL94 V-0

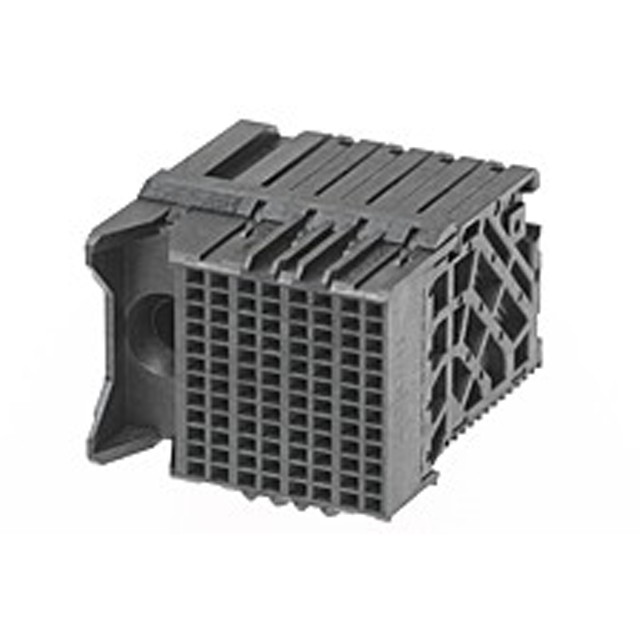

Molex 0768503008	All	Guide Left Impact	Board Guide	Board Edge Right Angle Through Hole	30 µin	Press-Fit	32	0.053 in	Gold	96	12	Female Sockets Receptacle	8	Black	30 V	-55 °C	85 °C	UL94 V-0
Molex 0768503006	All	Guide Left Impact	Board Guide	Board Edge Right Angle Through Hole	30 µin	Press-Fit	24	0.053 in	Gold	72	12	Female Sockets Receptacle	6	Black	30 V	-55 °C	85 °C	UL94 V-0

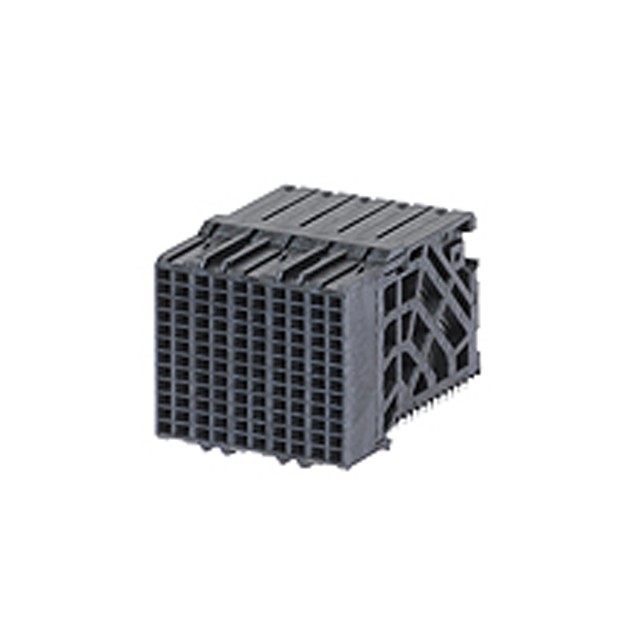

Molex 0768501020	All	Impact		Board Edge Right Angle Through Hole	30 µin	Press-Fit	40	0.053 in	Gold	120	12	Female Sockets Receptacle	10	Black	30 V	-55 °C	85 °C	UL94 V-0
Molex 0768501008	All	Impact		Board Edge Right Angle Through Hole	30 µin	Press-Fit	32	0.053 in	Gold	96	12	Female Sockets Receptacle	8	Black	30 V	-55 °C	85 °C	UL94 V-0
Molex 0768503038	All	Guide Left Impact	Board Guide	Board Edge Right Angle Through Hole	30 µin	Press-Fit	32	0.053 in	Gold	96	12	Female Sockets Receptacle	8	Black	30 V	-55 °C	85 °C	UL94 V-0
Molex 0768503020	All	Guide Left Impact	Board Guide	Board Edge Right Angle Through Hole	30 µin	Press-Fit	40	0.053 in	Gold	120	12	Female Sockets Receptacle	10	Black	30 V	-55 °C	85 °C	UL94 V-0
Molex 0768505008	All	Guide Right Impact	Board Guide	Board Edge Right Angle Through Hole	30 µin	Press-Fit	32	0.053 in	Gold	96	12	Female Sockets Receptacle	8	Black	30 V	-55 °C	85 °C	UL94 V-0
Molex 0768503010	All	Guide Left Impact	Board Guide	Board Edge Right Angle Through Hole	30 µin	Press-Fit	40	0.053 in	Gold	120	12	Female Sockets Receptacle	10	Black	30 V	-55 °C	85 °C	UL94 V-0

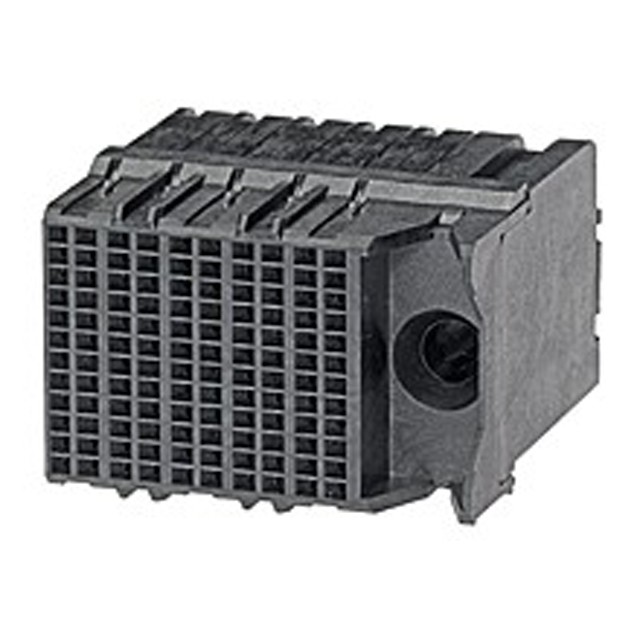

Molex 0768505010	All	Guide Right Impact	Board Guide	Board Edge Right Angle Through Hole	30 µin	Press-Fit	40	0.053 in	Gold	120	12	Female Sockets Receptacle	10	Black	30 V	-55 °C	85 °C	UL94 V-0
