CFS1/4CT52R103G

Active

KOA Speer Electronics, Inc.

RES 10K OHM 2% 1/4W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

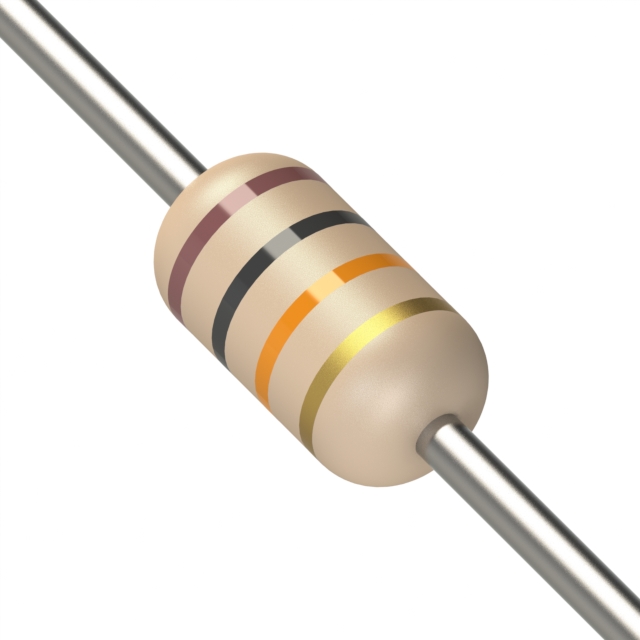

CFS1/4CT52R103G

Active

KOA Speer Electronics, Inc.

RES 10K OHM 2% 1/4W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.30
		10	$ 0.24
		25	$ 0.19
		50	$ 0.13
		100	$ 0.09
		250	$ 0.08
		500	$ 0.06
		1000	$ 0.04
	Tape & Reel (TR)	5000	$ 0.03

Description

General part information

CFS1/4 Series

10 kOhms ±2% 0.25W, 1/4W Through Hole Resistor Axial Carbon Film

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFS1/4CT52R103G	CFS1/4 Series

Composition	Carbon Film	Carbon Film
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	0.25 W	0.25 W
Power (Watts)	250 mW	250 mW
Resistance	10000 Ohms	2.4 - 10000 kOhms
Size / Dimension [diameter]	0.067 in	0.067 in
Size / Dimension [diameter]	1.7 mm	1.7 mm
Size / Dimension [x]	3.2 mm	3.2 mm
Size / Dimension [x]	0.126 in	0.126 in
Supplier Device Package	Axial	Axial
Temperature Coefficient [Max]	350 ppm/°C	-700 - 350
Temperature Coefficient [Min]	-450 ppm/°C	-1300 - 0 ppm/°C
Tolerance	2 %	2 - 5 %

CFS1/4 Series

RES CARBON FILM 680K OHM 5% 0.25W(1/4W) -1300PPM/°C TO 0PPM/°C CONFORMAL COATED AXL T/R

Part	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Supplier Device Package	Package / Case	Resistance	Tolerance	Composition	Temperature Coefficient [Max]	Temperature Coefficient [Min]
KOA Speer Electronics, Inc. CFS1/4CT52R684J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	680 kOhms	5 %	Carbon Film	0	-1300 ppm/°C
KOA Speer Electronics, Inc. CFS1/4C101J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	100 Ohms	5 %	Carbon Film	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CFS1/4CT52R511J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	510 Ohms	5 %	Carbon Film	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CFS1/4CT52R222J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	2200 Ohms	5 %	Carbon Film	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CFS1/4CT52R184J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	180 kOhms	5 %	Carbon Film	0	-1000 ppm/°C
KOA Speer Electronics, Inc. CFS1/4CT52R513J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	51 kOhms	5 %	Carbon Film	-700 ppm/°C	0 ppm/°C
KOA Speer Electronics, Inc. CFS1/4CT52R102J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	1000 Ohms	5 %	Carbon Film	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CFS1/4CT52R152J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	1500 Ohms	5 %	Carbon Film	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CFS1/4CT52R472J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	4.7 kOhms	5 %	Carbon Film	350 ppm/°C	-450 ppm/°C
KOA Speer Electronics, Inc. CFS1/4CT52R471J	0.25 W	250 mW	155 °C	-55 °C	2	3.2 mm	0.126 in	0.067 in	1.7 mm	Axial	Axial	470 Ohms	5 %	Carbon Film	350 ppm/°C	-450 ppm/°C
