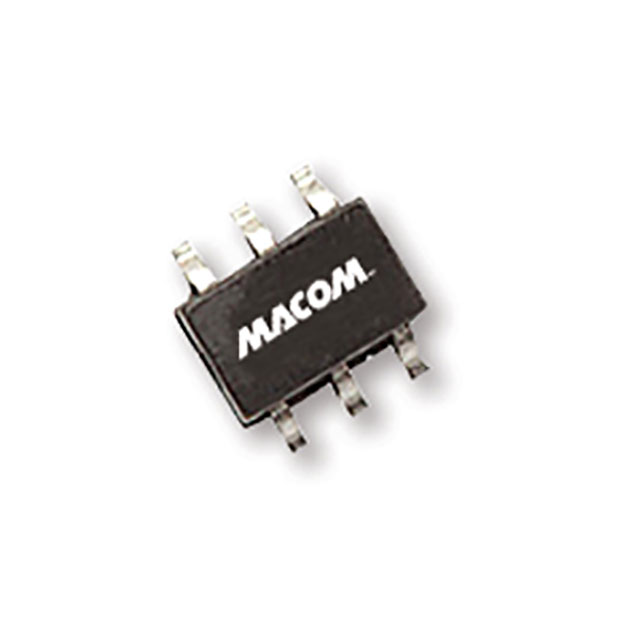

MASW-008853-001SMB
ActiveMACOM Technology Solutions
IC RF SWITCH SPDT 5GHZ SC70-6
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MASW-008853-001SMB
ActiveMACOM Technology Solutions
IC RF SWITCH SPDT 5GHZ SC70-6
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MASW-008853-001SMB |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 5 GHz |
| Frequency Range [Min] | 0 Hz |
| IIP3 | 56 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 1.1 dB |
| Isolation | 11 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| RF Type | General Purpose |
| Supplier Device Package | SC-70-6 (SOT-363) |
| Test Frequency | 5 GHz |
| Voltage - Supply [Max] | 2.7 V |
| Voltage - Supply [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 375.00 | |
Description
General part information
MASW-008853 Series
RF Switch IC General Purpose SPDT 50Ohm SC-70-6 (SOT-363)
