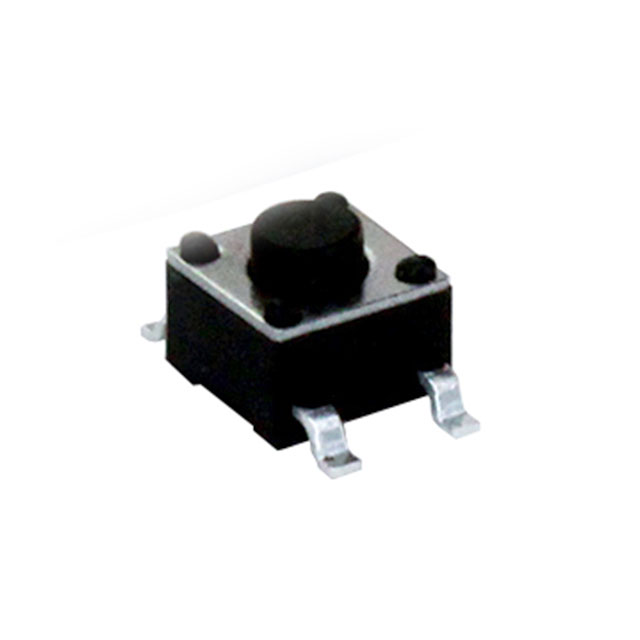

CS11043.8F180

Obsolete

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Obsolete

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CS11043.8F180

Actuator Height off PCB, Vertical	3.8 mm
Actuator Material	Polyamide (PA46), Nylon 4/6
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	180 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	4.5 mm
Outline [y]	4.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Outline [x]	Outline [y]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Operating Force	Actuator Height off PCB, Vertical	Actuator Material	Termination Style	Actuator Orientation	Circuit	Illumination	Contact Rating @ Voltage	Mounting Type	Switch Travel
CIT Relay and Switch CS11043.8F180	4.5 mm	4.5 mm	85 °C	-40 °C	Off-Mom	Standard	180 gf	3.8 mm	Nylon 4/6 Polyamide (PA46)	Gull Wing	Top Actuated	SPST-NO	Non-Illuminated	0.05 A 50 VDC	Surface Mount	0.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
