8281 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Diameter	Conductor Material	Shield Coverage	Shield Material	Velocity of Propagation (VoP)	Dielectric Material	Impedance	Cable Type	Usage	Conductor Strand	Length	Jacket Color	Jacket (Insulation) Diameter	Shield Type	Cable Group	Jacket (Insulation) Material	Wire Gauge
Belden Inc. 8281 0101000	80 °C	-55 °C	0.198 in	Bare Copper	95 %	Copper Tinned	66 %	Polyethylene (PE)	75 Ohm	Coaxial	Video	Solid	1000 ft	Black	0.305 in	Double Braid	RG-59	Polyethylene (PE)	20 AWG

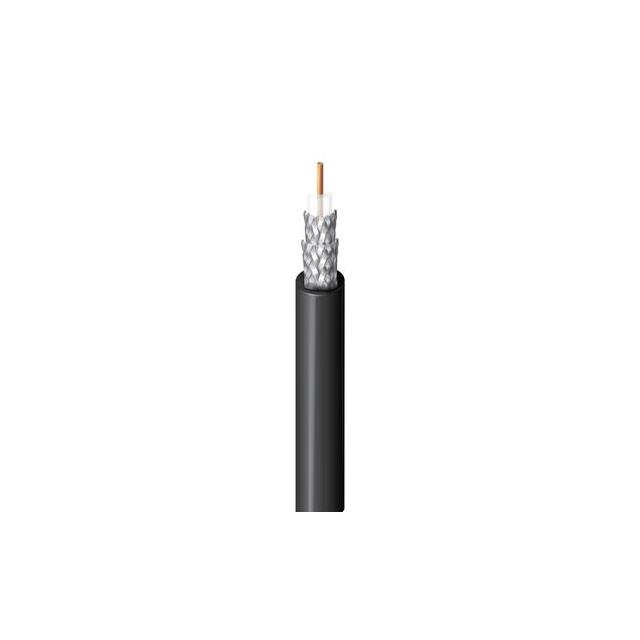

Belden Inc. 8281 010500	80 °C	-55 °C	0.198 in	Bare Copper	95 %	Copper Tinned	66 %	Polyethylene (PE)	75 Ohm	Coaxial	Video	Solid	500 ft	Black	0.305 in	Double Braid	RG-59	Polyethylene (PE)	20 AWG
Belden Inc. 8281 0031000	80 °C	-55 °C	0.198 in	Bare Copper	95 %	Copper Tinned	66 %	Polyethylene (PE)	75 Ohm	Coaxial	Video	Solid	1000 ft	Orange	0.305 in	Double Braid	RG-59	Polyethylene (PE)	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.
