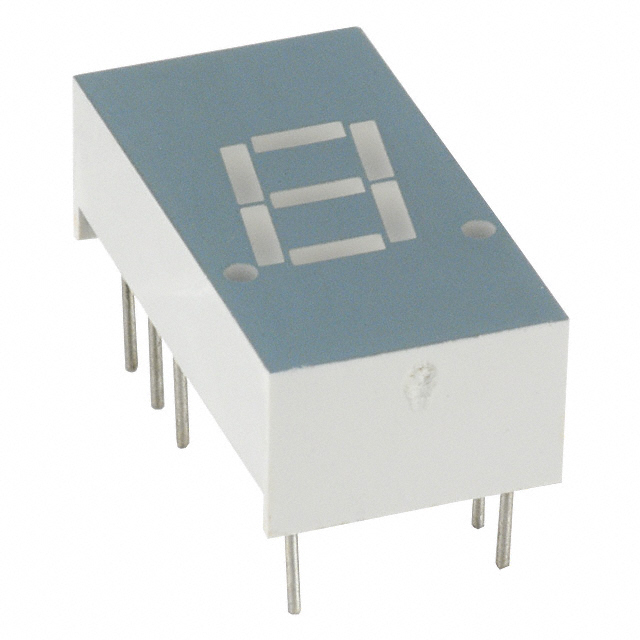

LDS-A303RI

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.31" SGL YLW 14DIP

Deep-Dive with AI

Search across all available documentation for this part.

LDS-A303RI

Active

Lumex Opto/Components Inc.

DISPLAY 7SEG 0.31" SGL YLW 14DIP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LDS-A303RI

Color	Yellow
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.31 in
Digit/Alpha Size	7.87 mm
Display Type	7-Segment
Millicandela Rating	2.5 mcd
Number of Characters [custom]	1
Package / Case	14-DIP
Package / Case	0.3 in, 7.62 mm
Package / Case	10 Leads
Power Dissipation (Max) [Max]	105 mW
Size / Dimension [x]	0.752 in
Size / Dimension [x]	19.1 mm
Size / Dimension [y]	10.18 mm
Size / Dimension [y]	0.401 in
Size / Dimension [z]	6.1 mm
Size / Dimension [z]	0.24 "
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Peak	585 nm

LDS-A303 Series

DISPLAY 7SEG 0.31" SGL YLW 14DIP

Part	Common Pin	Color	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Display Type	Power Dissipation (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Millicandela Rating
Lumex Opto/Components Inc. LDS-A303RI	Common Anode	Yellow	2.1 V	1	0.31 in	7.87 mm	14-DIP	0.3 in, 7.62 mm	10 Leads	585 nm	7-Segment	105 mW	10.18 mm	0.752 in	6.1 mm	0.24 "	19.1 mm	0.401 in	10 mA	2.5 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LDS-A303 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.1V 10mA 0.752" H x 0.401" W x 0.240" D (19.10mm x 10.18mm x 6.10mm) 14-DIP (0.300", 7.62mm), 10 Leads

Documents

Technical documentation and resources

No documents available
