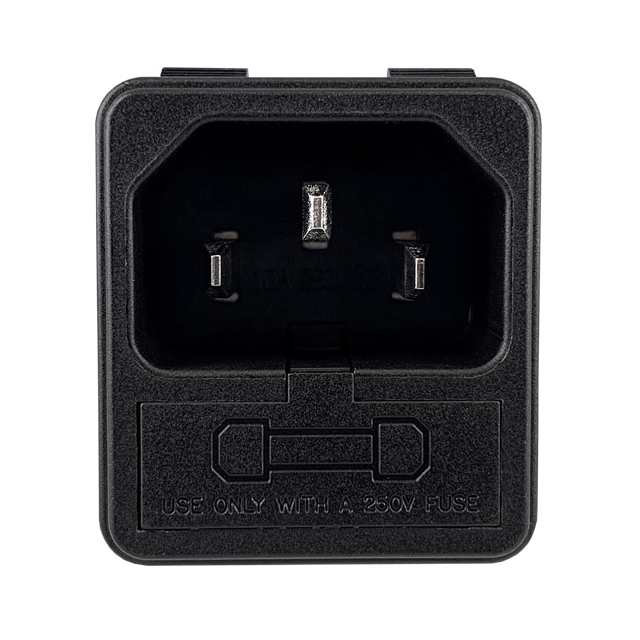

723W-X2/02
ActiveQualtek
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
723W-X2/02
ActiveQualtek
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 723W-X2/02 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | CSA, TUV, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size |
| Panel Thickness [Max] | 0.079 " |
| Panel Thickness [Max] | 2 mm |
| Panel Thickness [Min] | 0.031 " |
| Panel Thickness [Min] | 0.79 mm |
| Termination | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.47 | |
| 10 | $ 2.15 | |||
| 25 | $ 2.06 | |||
| 50 | $ 2.01 | |||
| 100 | $ 1.92 | |||
| 300 | $ 1.74 | |||
| 500 | $ 1.60 | |||
| 1000 | $ 1.37 | |||
| 2500 | $ 1.28 | |||
Description
General part information
723W-X2 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
