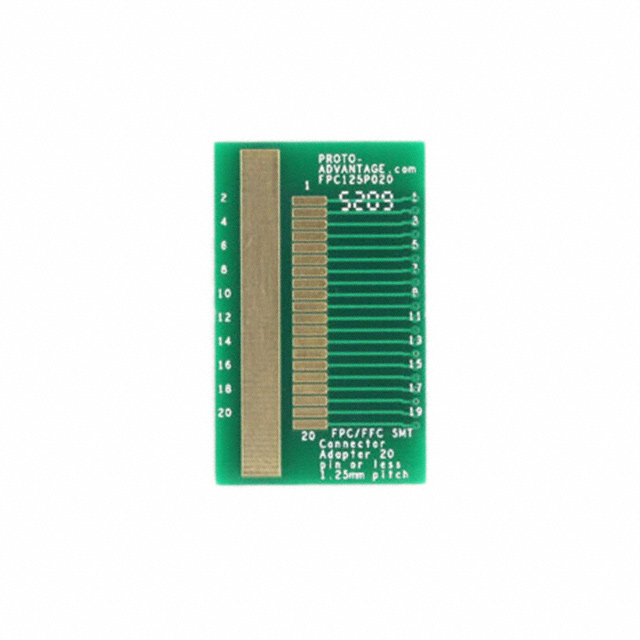

FPC125P020

Active

Chip Quik Inc.

FPC/FFC SMT CONNECTOR 1.25 MM PI

Search across all available documentation for this part.

Active

Chip Quik Inc.

FPC/FFC SMT CONNECTOR 1.25 MM PI

Technical Specifications

Parameters and characteristics for this part

FPC/FFC SMT CONNECTOR 1.25 MM PI

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Board Thickness	Board Thickness	Board Thickness	Number of Positions	Pitch [x]	Pitch [x]	Material	Package Accepted	Proto Board Type
Chip Quik Inc. FPC125P020	0.9 "	36.83 mm	22.86 mm	1.45 in	0.062 in	0.0625 in	1.57 mm	20	0.049 in	1.25 mm	FR4 Epoxy Glass	FPC Connector	SMD to DIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.79

General part information

FPC/FFC SMT CONNECTOR 1.25 MM PI

Technical documentation and resources
