Q-1W04K0008.25M

Active

Amphenol Custom Cable

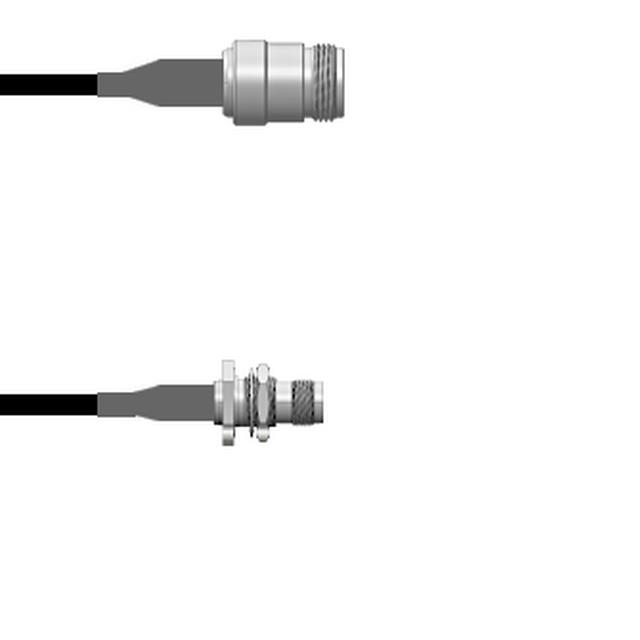

CBL ASSY NTYPE-TNC JK-JK 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W04K0008.25M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JK-JK 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W04K0008.25M

1st Connector	N-Type Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms

Q-1W04K0 Series

Part	Frequency - Max [Max]	2nd Connector Mounting Type	Cable Type	2nd Connector	1st Contact Gender	1st Connector Mounting Type	Features	1st Connector	Length	Length	Length	Overall Impedance	Color	2nd Connector Mounting Feature	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-1W04K0008001M	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack	1 m	3.3 ft	39.4 in	50 Ohms	Black	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1W04K0008018i	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack				50 Ohms	Black	Bulkhead - Front Side Nut	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-1W04K0008072i	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack	1.8 m	6 ft	72 in	50 Ohms	Black	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1W04K0008.75M	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack	750 mm		29.53 "	50 Ohms	Black	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1W04K0008009i	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack	228.6 mm		9 "	50 Ohms	Black	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1W04K0008.25M	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack				50 Ohms	Black	Bulkhead - Front Side Nut	Female		250 mm	9.843 "
Amphenol Custom Cable Q-1W04K00082.5M	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack	2.5 m	8.2 '	98.4 in	50 Ohms	Black	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1W04K00080.5M	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack	50 cm		19.69 "	50 Ohms	Black	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-1W04K0008084i	11 GHz	Panel Mount	RG-58	TNC Jack	Female	Free Hanging (In-Line)	Shielded	N-Type Jack	2.1 m	7 ft	84 in	50 Ohms	Black	Bulkhead - Front Side Nut	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 56.74
		25	$ 55.65
		50	$ 54.56
		100	$ 53.47
		250	$ 52.38

Description

General part information

Q-1W04K0 Series

Cable Assembly Coaxial N-Type to TNC RG-58 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
