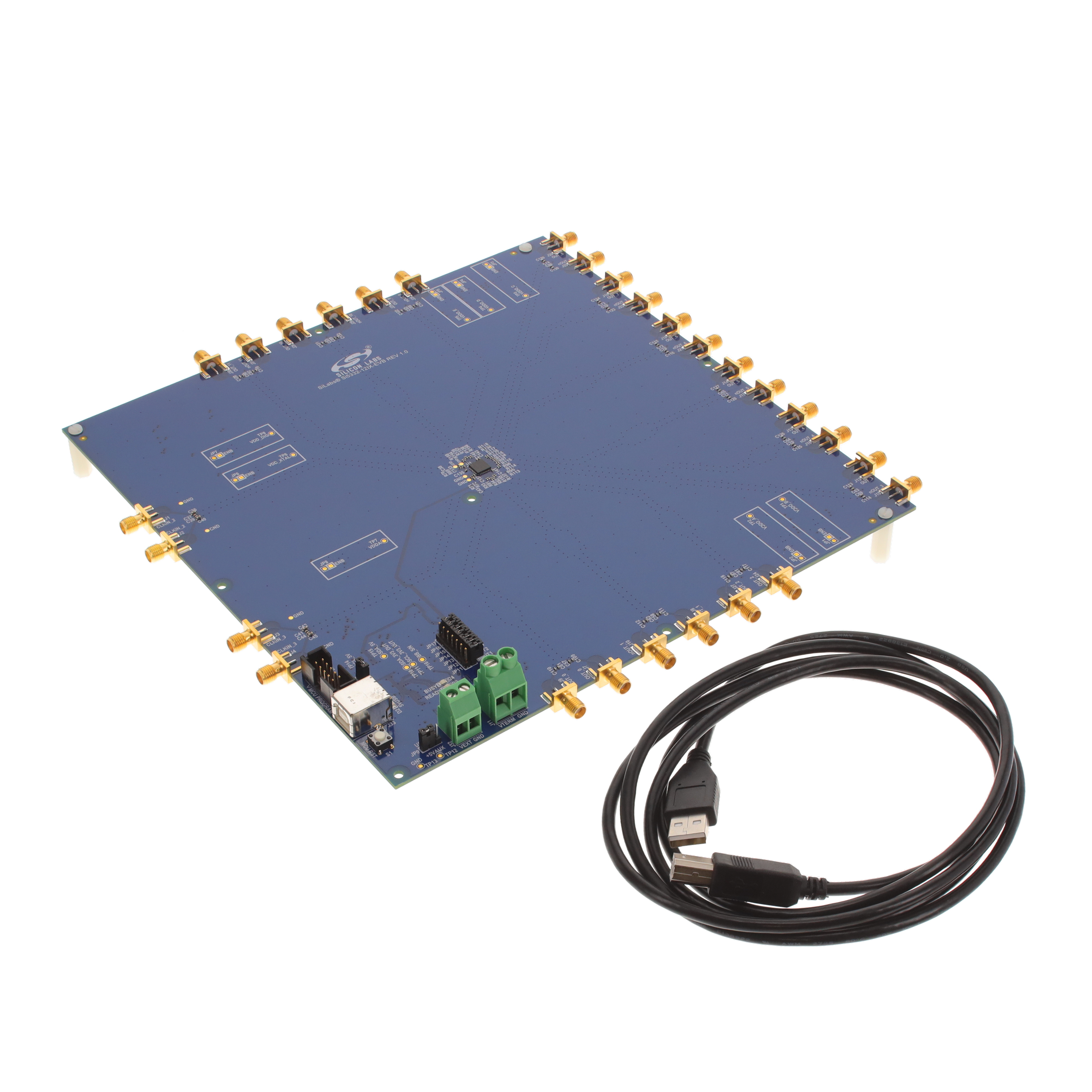

Specification	SI5332-12IX-EVB

Contents	Board
Function	Clock Generator
Primary Attributes	12-Channel
Secondary Attributes	Graphical User Interface (GUI)
Supplied Contents	Board(s)
Type	Timing
Utilized IC / Part	Si5332

SI5332 Series

...

Part	Package Width	Package Name	Package Length	Package / Case	Multiplier	Divider	Operating Temperature (Max)	Operating Temperature (Min)	Differential Input	Differential Output	Output Ratio	Input Ratio	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Output	Type	PLL	Input	Mounting Type	Frequency - Max	Number of Circuits
Skyworks Solutions Inc. SI5332F-D-GM2R	6 mm	40-LGA 40-QFN	6 mm	40-TFLGA Exposed Pad 40-VFQFN Exposed Pad	No	Yes	85 °C	-40 °C	Yes	Yes	8	3	1.71 V	3.63 V	HCSL LVCMOS LVDS LVPECL	Clock Generator	Yes	Crystal LVCMOS	Surface Mount	200 MHz	1
Skyworks Solutions Inc. SI5332DC09618-GM1R	5 mm	32-QFN	5 mm	32-VFQFN Exposed Pad															Surface Mount
Skyworks Solutions Inc. SI5332BC09378-GM2R	6 mm	40-QFN	6 mm	40-VFQFN Exposed Pad															Surface Mount
Skyworks Solutions Inc. SI5332AD08982-GM1R	5 mm	32-QFN	5 mm	32-VFQFN Exposed Pad	No	Yes	85 °C	-40 °C	Yes	Yes	6	2	1.71 V	3.63 V	HCSL LVCMOS LVDS LVPECL	Clock Generator	Yes	Crystal LVCMOS	Surface Mount	333.33 MHz	1
Skyworks Solutions Inc. SI5332DC09724-GM3R	6 mm	48-QFN	6 mm	48-VFQFN Exposed Pad															Surface Mount
Skyworks Solutions Inc. SI5332H-D-GM3R	6 mm	48-LGA	6 mm	48-TFLGA Exposed Pad	No	Yes	85 °C	-40 °C	Yes	Yes	12	3	1.71 V	3.63 V	HCSL LVCMOS LVDS LVPECL	Clock Generator	Yes	Crystal LVCMOS	Surface Mount	200 MHz	1
Skyworks Solutions Inc. SI5332BC08777-GM2	6 mm	40-QFN	6 mm	40-VFQFN Exposed Pad															Surface Mount
Skyworks Solutions Inc. SI5332DC08279-GM3	6 mm	48-QFN	6 mm	48-VFQFN Exposed Pad															Surface Mount
Skyworks Solutions Inc. SI5332AC10334-GM1R	5 mm	32-QFN	5 mm	32-VFQFN Exposed Pad															Surface Mount
Skyworks Solutions Inc. SI5332F-D-GM3R	6 mm	48-LGA	6 mm	48-TFLGA Exposed Pad	No	Yes	85 °C	-40 °C	Yes	Yes	12	3	1.71 V	3.63 V	HCSL LVCMOS LVDS LVPECL	Clock Generator	Yes	Crystal LVCMOS	Surface Mount	200 MHz	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SI5332-12IX-EVB | Datasheet
