SI5332H-D-GM3R

Active

Skyworks Solutions Inc.

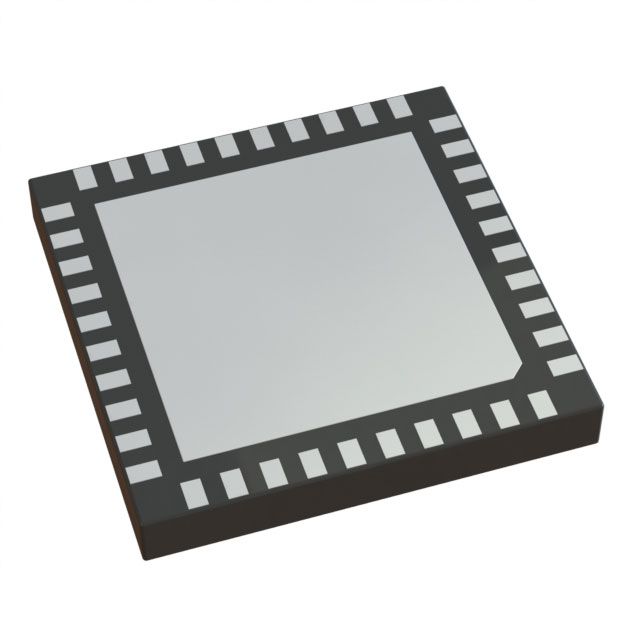

IC CLOCK GENERATOR 48LGA

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

IC CLOCK GENERATOR 48LGA

Technical Specifications

Parameters and characteristics for this part

Specification	SI5332H-D-GM3R

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Divider/Multiplier	Yes/No
Frequency - Max [Max]	200 MHz
Input	LVCMOS, Crystal
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS, HCSL, LVPECL, LVDS
Package / Case	48-TFLGA Exposed Pad
PLL	True
Ratio - Input:Output [custom]	12
Ratio - Input:Output [custom]	3
Supplier Device Package	48-LGA (6x6)
Type	Clock Generator
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	1.71 V

...

Part	Mounting Type	Input	Ratio - Input:Output	Number of Circuits	Divider/Multiplier	Frequency - Max [Max]	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Output	Supplier Device Package	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]
Skyworks Solutions Inc. SI5332F-D-GM2R	Surface Mount	Crystal LVCMOS	3:8	1	Yes/No	200 MHz	40-VFQFN Exposed Pad	3.63 V	1.71 V	85 °C	-40 °C	Clock Generator	HCSL LVCMOS LVDS LVPECL	40-QFN (6x6)
Skyworks Solutions Inc. SI5332DC09618-GM1R
Skyworks Solutions Inc. SI5332BC09378-GM2R
Skyworks Solutions Inc. SI5332DC09724-GM3R
Skyworks Solutions Inc. SI5332H-D-GM3R	Surface Mount	Crystal LVCMOS		1	Yes/No	200 MHz	48-TFLGA Exposed Pad	3.63 V	1.71 V	85 °C	-40 °C	Clock Generator	HCSL LVCMOS LVDS LVPECL	48-LGA (6x6)	12	3
Skyworks Solutions Inc. SI5332BC08777-GM2
Skyworks Solutions Inc. SI5332DC08279-GM3
Skyworks Solutions Inc. SI5332F-D-GM3R	Surface Mount	Crystal LVCMOS		1	Yes/No	200 MHz	48-TFLGA Exposed Pad	3.63 V	1.71 V	85 °C	-40 °C	Clock Generator	HCSL LVCMOS LVDS LVPECL	48-LGA (6x6)	12	3
Skyworks Solutions Inc. SI5332AC08769-GM3
Skyworks Solutions Inc. SI5332CC08930-GM3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 9.95

General part information

Clock Generator IC 200MHz 1 48-TFLGA Exposed Pad
