SSRS4-8-01
ActiveEssentra Access Solutions

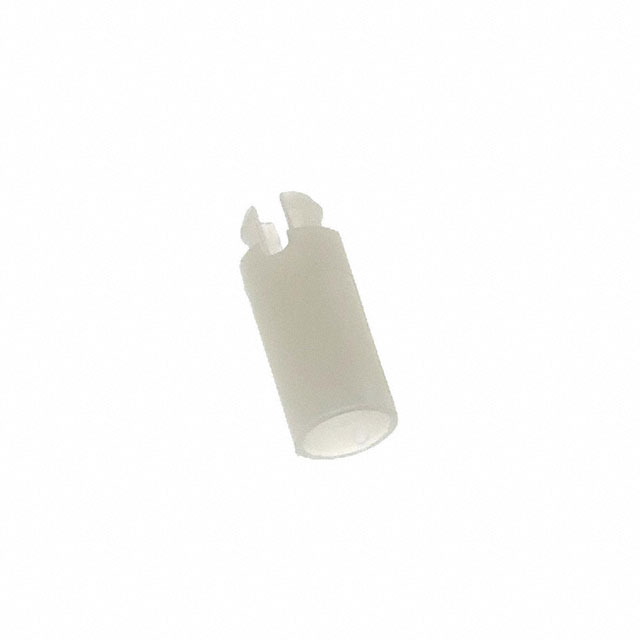

BRD SPT SNAP LOCK SCREW MNT 1/2"
Deep-Dive with AI
Search across all available documentation for this part.
SSRS4-8-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK SCREW MNT 1/2"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SSRS4-8-01 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Features | Stackable |
| Holding Type | Snap Lock |
| Length - Overall [x] | 0.626 in |
| Length - Overall [x] | 15.9 mm |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.187 in |
| Mounting Hole Diameter [diameter] | 4.75 mm |
| Mounting Hole Diameter [diameter] | 3 in |
| Mounting Type | Resting Mount |
| Support Hole Diameter [diameter] | 0.1875 " |
| Support Hole Diameter [diameter] | 4.75 mm |
| Support Hole Diameter [diameter] | 0.187 " |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
SSRS4 Series
| Part | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Features | Material | Holding Type | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Mounting Type | Between Board Height | Between Board Height | Between Board Height | Length - Overall | Length - Overall | Length - Overall | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | 0.1875 " | 4.75 mm | 0.187 " | 0.187 in | 4.75 mm | 3 in | Stackable | Nylon | Snap Lock | 0.0625 " | 0.062 " | 1.57 mm | Screw Mount | 0.3125 in | 7.95 mm | 0.313 " | 0.438 in | 11.13 mm | 0.4375 in | ||
Essentra Access Solutions | 0.1875 " | 4.75 mm | 0.187 " | 0.187 in | 4.75 mm | 3 in | Stackable | Nylon | Snap Lock | 0.0625 " | 0.062 " | 1.57 mm | Resting Mount | 0.5 in | 12.7 mm | 0.5 in | 0.626 in | 15.9 mm | |||
Essentra Access Solutions | 0.1875 " | 4.75 mm | 0.187 " | 0.187 in | 4.75 mm | 3 in | Stackable | Nylon | Snap Lock | 0.0625 " | 0.062 " | 1.57 mm | Screw Mount | 0.125 in | 3.18 mm | 0.125 in | 0.252 in | 6.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 5 | $ 0.35 | |||
| 10 | $ 0.29 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.22 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.20 | |||
Description
General part information
SSRS4 Series
Board Support Snap Lock / Resting Mount Nylon 0.500" (12.70mm) 1/2"
Documents
Technical documentation and resources
No documents available
