AV4024
ActivePanasonic Electric Works

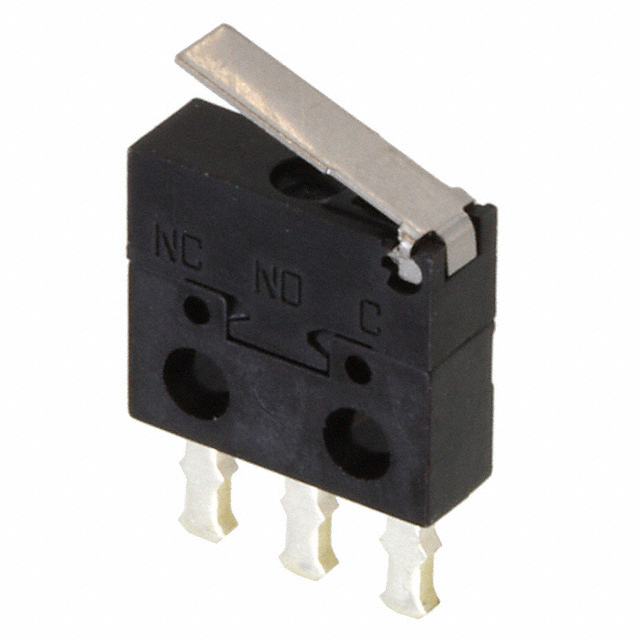

SWITCH SNAP ACTION SPDT 0.5A 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHow to Read Date Codes
AV4024
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 0.5A 30V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AV4024 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA |
| Differential Travel | 0.027 " |
| Differential Travel | 0.7 mm |
| Electrical Life | 20000 Steps |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Position [x] | 6.4 mm |
| Operating Position [x] | 0.25 in |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.4 mm |
| Overtravel | 0.015 " |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.36 | |
| 10 | $ 2.18 | |||
| 25 | $ 2.05 | |||
| 50 | $ 2.00 | |||
| 100 | $ 1.59 | |||
| 300 | $ 1.50 | |||
| 500 | $ 1.41 | |||
| 1000 | $ 1.32 | |||
| 5000 | $ 1.23 | |||
Description
General part information
AV402 Series
Switch SPDT Chassis Mount
