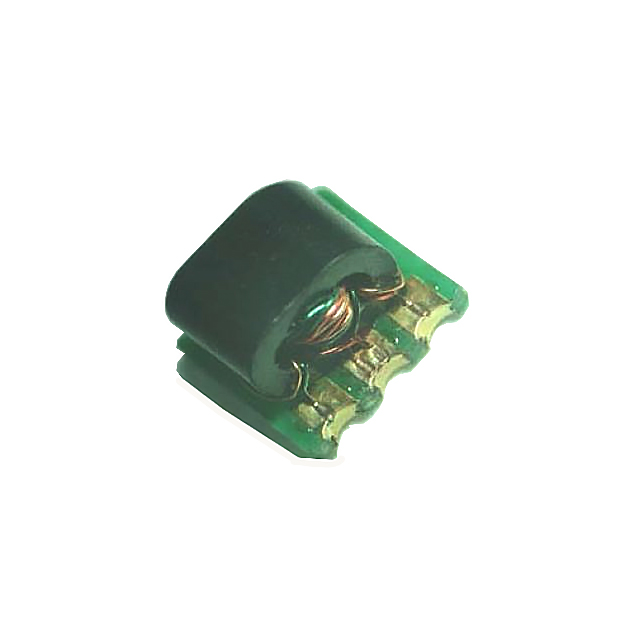

MABA-009573-CF1A40

Active

MACOM Technology Solutions

TRANSFORMER 1.7:1 FLUX COUPLED

Search across all available documentation for this part.

Active

MACOM Technology Solutions

TRANSFORMER 1.7:1 FLUX COUPLED

Technical Specifications

Parameters and characteristics for this part

Specification	MABA-009573-CF1A40

Frequency Range [Max]	100 MHz
Frequency Range [Min]	5 MHz
Impedance - Unbalanced/Balanced	1.77:1
Insertion Loss (Max)	0.5 dB
Mounting Type	Surface Mount
Package / Case	6-SMD (5 Leads), Flat Lead
Return Loss (Min) [Min]	24 dB

Part	Insertion Loss (Max)	Impedance - Unbalanced/Balanced	Package / Case	Return Loss (Min) [Min]	Mounting Type	Frequency Range [Max]	Frequency Range [Min]
MACOM Technology Solutions MABA-009573-CF1A40	0.5 dB	1.77:1	6-SMD (5 Leads) Flat Lead	24 dB	Surface Mount	100 MHz	5 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.20
	Digi-Reel®	1	$ 3.20
	Tape & Reel (TR)	2000	$ 1.56

General part information

RF Balun 5MHz ~ 100MHz 1.77:1 6-SMD (5 Leads), Flat Lead
