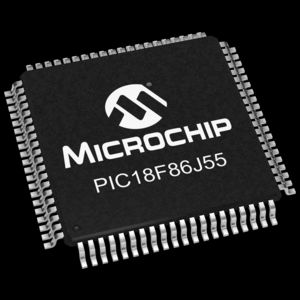

PIC18F86J55-I/PT

Active

Microchip Technology

IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,TQFP,64PIN,PLASTIC ROHS COMPLIANT: YES

PIC18F86J55-I/PT

Active

Microchip Technology

IC,MICROCONTROLLER,8-BIT,PIC CPU,CMOS,TQFP,64PIN,PLASTIC ROHS COMPLIANT: YES

Description Specifications Series Pricing CAD Documents

Description

General part information

PIC18F86 Series

Featuring nanoWatt XLP Technology, this 8-bit microcontroller is well suited for power-constrained and battery-powered applications. The Charge Time Measurement Unit (CTMU) simplifies the design of capacitive touch applications and can enable other applications requiring precise time and/or temperature measurement. Robust features such as wide operating voltage and temperature ranges and high endurance flash program and data EEPROM make this an excellent microcontroller for rugged automotive and industrial applications. Additional peripherals, such as a 12-bit A/D converter, 3 comparators H/W RTCC, 10 total CCP/ECCP channels, 11 total timers and 69 general purpose I/O, give this cost-effective microcontroller seemingly limitless possibilities in a variety of applications where high performance with low cost is required.

Technical Specifications

Parameters and characteristics for this part

Specification	PIC18F86J55-I/PT

A/D Channels	12 count
A/D Resolution (bits)	10 bit
Connectivity	EMI, USART, UART, EBI, I2C, SPI, USB
Core Processor	PIC
Core Size (Bit Width)	8 Bit
Mounting Type	Surface Mount
Number of I/O	65
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Oscillator Type	Internal
Package / Case	80-TQFP
Package Length	12 mm
Package Name	80-TQFP
Package Width	12 mm
Peripherals	Reset, LVD, Brown-out Detect, WDT, POR, PWM
Program Memory Depth	48 K
Program Memory Size	96 KB
Program Memory Type	FLASH
Program Memory Width	16
RAM Size Depth	3.8 K
RAM Size Width	8 bit
Speed	48 MHz
Voltage - Supply (Vcc/Vdd) Maximum	3.6 V
Voltage - Supply (Vcc/Vdd) Minimum	2 V

PIC18F86 Series

Part	Connectivity	Program Memory Depth	Program Memory Size	Program Memory Width	Program Memory Size	Oscillator Type	Mounting Type	Package Width	Package Name	Package Length	Number of I/O	Speed	A/D Resolution (bits)	A/D Channels	Program Memory Type	Operating Temperature (Max)	Operating Temperature (Min)	RAM Size Depth	RAM Size Width	Core Processor	EEPROM Size (Depth)	EEPROM Size (Width)	Core Size (Bit Width)	Voltage - Supply (Vcc/Vdd) Minimum	Voltage - Supply (Vcc/Vdd) Maximum	Peripherals	Package / Case
Microchip Technology PIC18F86K90-E/PT	I2C LINbus SPI UART USART	32 K	64KB	16	64 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	69	64 MHz	12 bit	24 count	FLASH	125 °C	-40 °C	4 K	8 bit	PIC	1 K	8 bit	8 Bit	1.8 V	5.5 V	Brown-out Detect LCD POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86K22T-I/PTRSL	EBI EMI I2C LINbus SPI UART USART	32 K	64KB	16	64 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	69	64 MHz	12 bit	24 count	FLASH	85 °C	-40 °C	4 K	8 bit	PIC	1 K	8 bit	8 Bit	1.8 V	5.5 V	Brown-out Detect LVD POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86J65-I/PT	Ethernet I2C SPI UART USART	48 K		16	96 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	55	41.667 MHz	10 bit	15 count	FLASH	85 °C	-40 °C	3808	8 bit	PIC			8 Bit	2 V	3.6 V	Brown-out Detect POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86J15-I/PT	EBI EMI I2C SPI UART USART	48 K		16	96 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	66	40 MHz	10 bit	15 count	FLASH	85 °C	-40 °C	3.8 K	8 bit	PIC			8 Bit	2 V	3.6 V	Brown-out Detect POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86J94-I/PT	I2C IrDA LINbus SPI UART USART USB	32 K	64KB	16	64 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	68	64 MHz	12 bit	24 count	FLASH	85 °C	-40 °C	4 K	8 bit	PIC			8 Bit	2 V	3.6 V	Brown-out Detect HLVD LCD POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86K90T-I/PT	I2C LINbus SPI UART USART	32 K	64KB	16	64 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	69	64 MHz	12 bit	24 count	FLASH	85 °C	-40 °C	4 K	8 bit	PIC	1 K	8 bit	8 Bit	1.8 V	5.5 V	Brown-out Detect LCD POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86K90-I/PTRSL	I2C LINbus SPI UART USART	32 K	64KB	16	64 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	69	64 MHz	12 bit	24 count	FLASH	85 °C	-40 °C	4 K	8 bit	PIC	1 K	8 bit	8 Bit	1.8 V	5.5 V	Brown-out Detect LCD POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86J55-I/PT	EBI EMI I2C SPI UART USART USB	48 K		16	96 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	65	48 MHz	10 bit	12 count	FLASH	85 °C	-40 °C	3.8 K	8 bit	PIC			8 Bit	2 V	3.6 V	Brown-out Detect LVD POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86J93-I/PT	I2C LINbus SPI UART USART	32 K	64KB	16	64 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	67	48 MHz	12 bit	12 count	FLASH	85 °C	-40 °C	3923	8 bit	PIC			8 Bit	2 V	3.6 V	Brown-out Detect LCD LVD POR PWM Reset WDT	80-TQFP
Microchip Technology PIC18F86K90-I/PT	I2C LINbus SPI UART USART	32 K	64KB	16	64 KB	Internal	Surface Mount	12 mm	80-TQFP	12 mm	69	64 MHz	12 bit	24 count	FLASH	85 °C	-40 °C	4 K	8 bit	PIC	1 K	8 bit	8 Bit	1.8 V	5.5 V	Brown-out Detect LCD POR PWM Reset WDT	80-TQFP
