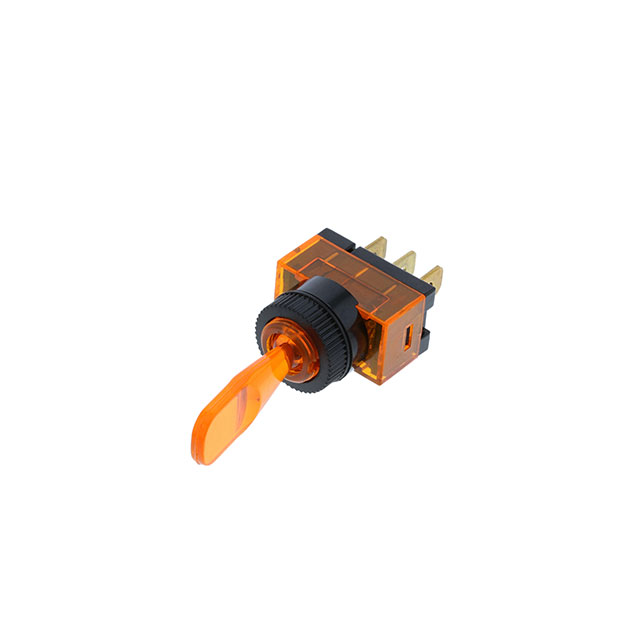

TE1-1A-DC-1-AL

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPST 20A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TE1-1A-DC-1-AL	TE1-1A Series

Actuator Length [x]	27 mm	27 mm
Actuator Type	Flatted	Flatted
Bushing Thread	M12	M12
Bushing Thread	1 x 1	1 x 1
Circuit	SPST	SPST
Current Rating (Amps)	20 A	20 A
Electrical Life	6000 Cycles	6000 Cycles
Illumination	Illuminated	Illuminated
Illumination Type, Color	Amber, Incandescent	Incandescent, Red, Blue, Amber, Green
Illumination Voltage (Nominal)	12 VDC	12 VDC
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	12.2 mm	12.2 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH TOGGLE SPST 20A 12V

Part	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Electrical Life	Current Rating (Amps)	Actuator Type	Circuit	Illumination	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Switch Function	Bushing Thread	Bushing Thread	Illumination Type, Color	Termination Style
Switch Components TE1-1A-DC-1-RL	12.2 mm	27 mm	6000 Cycles	20 A	Flatted	SPST	Illuminated	12 V	-25 °C	85 °C	12 VDC	On-Off	M12	1 x 1	Incandescent, Red	Quick Connect - 0.250" (6.3mm)
Switch Components TE1-1A-DC-1-UL	12.2 mm	27 mm	6000 Cycles	20 A	Flatted	SPST	Illuminated	12 V	-25 °C	85 °C	12 VDC	On-Off	M12	1 x 1	Blue, Incandescent	Quick Connect - 0.250" (6.3mm)
Switch Components TE1-1A-DC-1-AL	12.2 mm	27 mm	6000 Cycles	20 A	Flatted	SPST	Illuminated	12 V	-25 °C	85 °C	12 VDC	On-Off	M12	1 x 1	Amber, Incandescent	Quick Connect - 0.250" (6.3mm)
Switch Components TE1-1A-DC-1-GL	12.2 mm	27 mm	6000 Cycles	20 A	Flatted	SPST	Illuminated	12 V	-25 °C	85 °C	12 VDC	On-Off	M12	1 x 1	Green, Incandescent	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
