221I,AL

Active

BOX ABS ALMOND 4.1"L X 2.6"W

Active

BOX ABS ALMOND 4.1"L X 2.6"W

Description

General part information

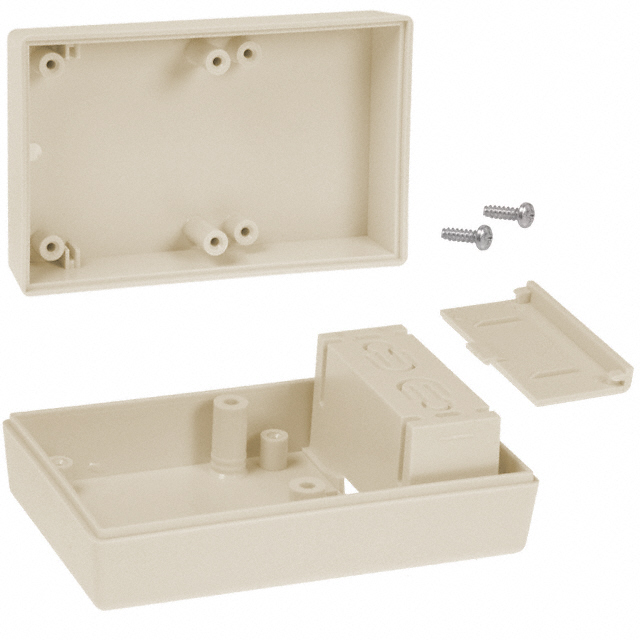

Box Plastic, ABS Almond Hand Held, Split Sides 4.100" L x 2.600" W (104.14mm x 66.04mm) X 1.510" (38.35mm)

Parameters and characteristics for this part

Specification	221I,AL

Area (L x W)	10.7 in²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, 9V, PCB Supports
Height	1.51 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	4.1 in
Size / Dimension Width	2.6 in
Thickness	0.1 in
Weight	0.17 lb

Part	Weight	Color	Height	Ratings	Thickness	Design	Material	Features	Material Flammability Rating	Area (L x W)	Size / Dimension Width	Size / Dimension Length	Container Type
Serpac 221I,GY	0.17 lb	Gray	1.51 in	IP40 NEMA 1	0.1 in	Hand Held Split Sides	ABS Plastic	9V Battery Compartment PCB Supports	UL94 HB	10.7 in²	2.6 in	4.1 in	Box
Serpac 221I,AL	0.17 lb	Almond	1.51 in	IP40 NEMA 1	0.1 in	Hand Held Split Sides	ABS Plastic	9V Battery Compartment PCB Supports	UL94 HB	10.7 in²	2.6 in	4.1 in	Box
Serpac 221I,PC,BK	0.17 lb	Black	1.51 in	IP40 NEMA 1	0.1 in	Hand Held Split Sides	ABS Plastic	9V Battery Compartment PCB Supports Pocket Clip	UL94 HB	10.7 in²	2.6 in	4.1 in	Box
Serpac 221I,BK	0.17 lb	Black	1.51 in	IP40 NEMA 1	0.1 in	Hand Held Split Sides	ABS Plastic	9V Battery Compartment PCB Supports	UL94 HB	10.7 in²	2.6 in	4.1 in	Box
