11-1"X72YDS

Active

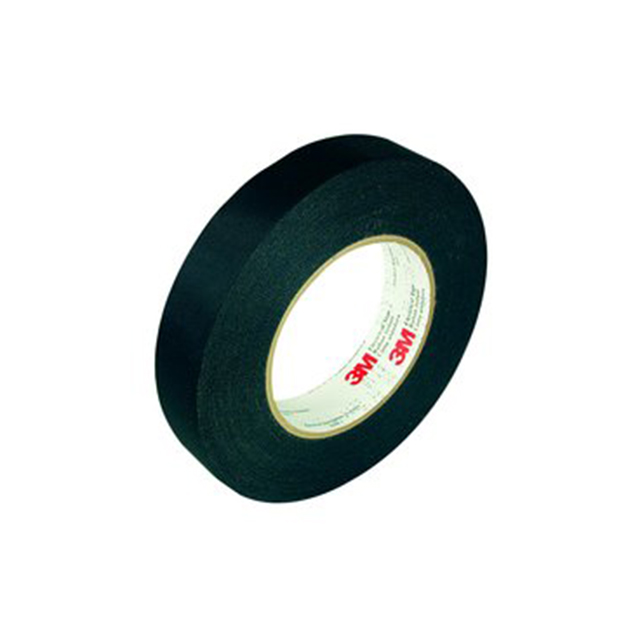

TAPE ELECTRICAL BLACK 1"X72YDS

Search across all available documentation for this part.

Active

TAPE ELECTRICAL BLACK 1"X72YDS

Technical Specifications

Parameters and characteristics for this part

Specification	11-1"X72YDS

Adhesive	Rubber
Backing, Carrier	Acetate Cloth
Color	Black
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Tape Type	Electrical
Temperature Range [Max]	221 °F
Temperature Range [Max]	105 °C
Temperature Range [Min]	0 °C
Temperature Range [Min]	0 °C
Thickness - Adhesive	0.0023 "
Thickness - Adhesive	2.3 mils
Thickness - Adhesive	0.058 mm
Thickness - Backing, Carrier	0.006 in
Thickness - Backing, Carrier	6 mils
Thickness - Backing, Carrier	0.152 mm
Usage	High Temperature, Insulating
Width [x]	25.4 mm
Width [x]	1 in

TAPE ELECTRICAL BLACK 1"X72YDS

Part	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Shelf Life	Shelf Life Start	Width [x]	Width [x]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Usage	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Length	Length	Length	Color	Backing, Carrier	Tape Type	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier
3M 11-1"X72YDS	221 °F	0 °C	105 °C	0 °C	60 Months	Date of Manufacture	25.4 mm	1 in	0.0023 "	2.3 mils	0.058 mm	Rubber	High Temperature, Insulating	27 °C, 80 °F	10 °C	66 m	216 ft	72 yd	Black	Acetate Cloth	Electrical	0.006 in	6 mils	0.152 mm
