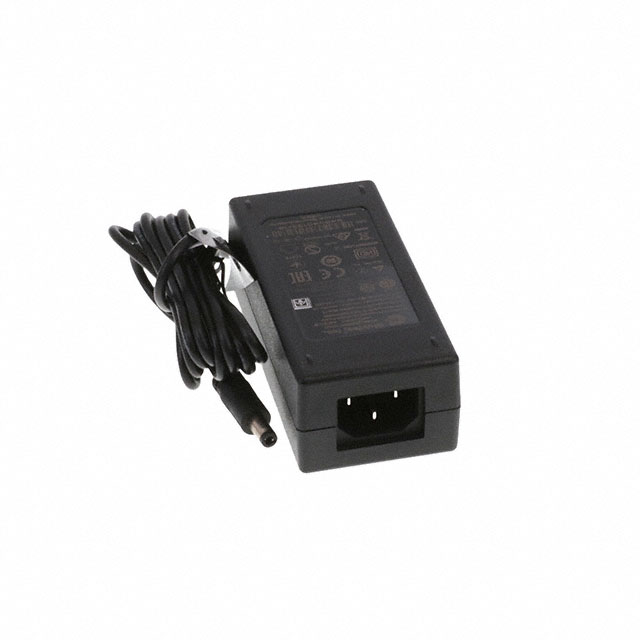

TR9CI1500LCPIMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 36W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR9CI1500LCPIMR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 36W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CI1500LCPIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CB, S-Mark, VCCI, LPS, CCC, CE, PSE, UKRSepro, RCM, EAC, ETL
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	1.5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension	113.3 mm, 35.5 mm, 50 mm
Size / Dimension [x]	4.46 in
Size / Dimension [y]	1.97 "
Size / Dimension [z]	1.4 "
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

TR9CI1500 Series

Part	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Cord Length	Cord Length	Applications	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Output Connector	Polarization	Current - Output (Max) [Max]	Efficiency	Region Utilized	Input Type	Form	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output	Standard Number	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector [z]
GlobTek, Inc. TR9CI1500T00-IMR6B	CB CCC CE EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	90 VAC	264 VAC	75 mW	1.5 m	59 in	Household Appliances ITE (Commercial) Medical	1.4 "	35.5 mm 50 mm 113.3 mm	4.46 in	1.97 "	1.3mm x 3.5mm Barrel Plug Kit	Negative Center	1.5 A	CoC Tier 2 Level VI	International	Cord	Desktop (Class I)	36 W	-10 °C	40 °C	24 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	IEC 320-C14
GlobTek, Inc. TR9CI1500LCPIMR6B	CB CCC CE EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	90 VAC	264 VAC	75 mW	1.53 m	60.2 in	Household Appliances ITE (Commercial) Medical	1.4 "	35.5 mm 50 mm 113.3 mm	4.46 in	1.97 "	Barrel Plug	Positive Center	1.5 A	CoC Tier 2 Level VI	International	Cord	Desktop (Class I)	36 W	-10 °C	40 °C	24 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	IEC 320-C14	2.5 mm 5.5 mm	11 mm
GlobTek, Inc. TR9CI1500CCPIMR6B	CB CCC CE EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	90 VAC	264 VAC	75 mW	1.5 m	59 in	Household Appliances ITE (Commercial) Medical	1.4 "	35.5 mm 50 mm 113.3 mm	4.46 in	1.97 "	Barrel Plug	Positive Center	1.5 A	CoC Tier 2 Level VI	International	Cord	Desktop (Class I)	36 W	-10 °C	40 °C	24 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	IEC 320-C14	2.1 mm 5.5 mm		11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.94
		5	$ 17.45
		10	$ 16.48
		48	$ 15.51
		96	$ 14.54
		144	$ 13.57
		288	$ 13.09
		528	$ 12.90

Description

General part information

TR9CI1500 Series

24V 36 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
