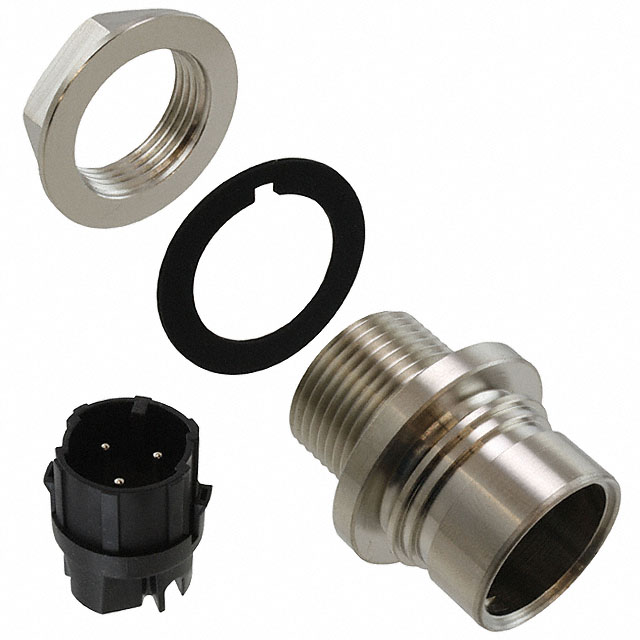

Specification	PXM6012/03P/ST

Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating Options	11A, 16A
Fastening Type	Push-Twist
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP66
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	3
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Position Types	PE, Power
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 VAC
Voltage Rating (Type)	DC

PXM6012 Series

Part	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Contact Type	Mounting Type	Housing Color	Number of Positions	Position Types	Connector Type	Mounting Feature	Orientation	Material Flammability Rating	Primary Material	Type	Shielding	Fastening Type	Features	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Includes Total Count	Includes	Note
BULGIN LIMITED PXP6012/02S/CR	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Crimp Solder Cup	Panel Mount	Gray	2	Power	Receptacle Housing	Bulkhead Rear Side Nut	Keyed	UL94 V-0	Plastic	For Female Sockets	Unshielded	Push-Twist
BULGIN LIMITED PXP6010/16P/CR/0910	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Crimp Solder Cup	Free Hanging (In-Line)	Gray	16	Power	Plug Housing		Keyed	UL94 V-0	Plastic	For Male Pins	Unshielded	Push-Twist	Backshell Coupling Nut
BULGIN LIMITED PXM6010/08S/CR/0507	Brass	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Crimp Solder Cup	Free Hanging (In-Line)	Silver	8	Power	Plug Housing		Keyed		Metal	For Female Sockets	Unshielded	Push-Twist	Backshell Coupling Nut	Nickel
BULGIN LIMITED PXM6012/22P/CR	Brass	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Crimp Solder Cup	Panel Mount	Silver	22	Power	Receptacle Housing	Bulkhead Rear Side Nut	Keyed		Metal	For Male Pins	Shielded Unshielded	Push-Twist		Nickel	120 °C	-40 °C	Circular	3 pcs	Connector Nut Washer	Contacts Not Included
BULGIN LIMITED PXP6010/03P/CR/0507	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Crimp Solder Cup	Free Hanging (In-Line)	Gray	3	PE Power	Plug Housing		Keyed	UL94 V-0	Plastic	For Male Pins	Unshielded	Push-Twist	Backshell Coupling Nut
