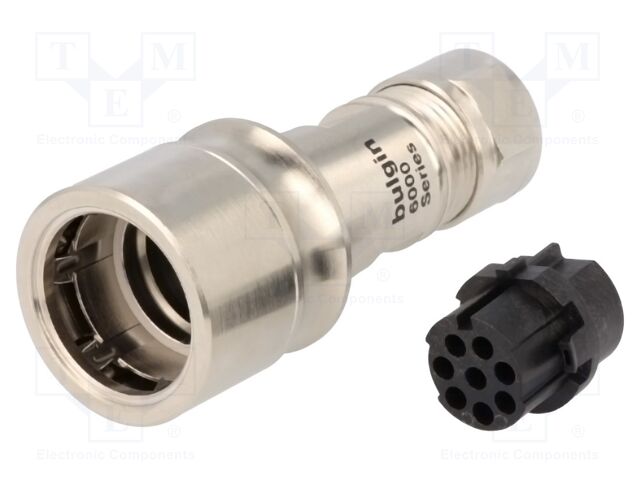

buccaneer-6000 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
CONNECTOR: CIRCULAR; SOCKET; FEMALE; PIN: 2; 16A; 277V; W/O CONTACTS
| Part | Shell Material | Ingress Protection Description | Ingress Protection IP Rating | Contact Type | Mounting Type | Housing Color | Number of Positions | Position Types | Connector Type | Mounting Feature | Orientation | Material Flammability Rating | Primary Material | Type | Shielding | Fastening Type | Features | Shell Finish | Operating Temperature (Max) | Operating Temperature (Min) | Contact Shape | Includes Total Count | Includes | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Dust Tight Water Resistant Waterproof | IP66 IP68 IP69K | Crimp Solder Cup | Panel Mount | Gray | 2 | Power | Receptacle Housing | Bulkhead Rear Side Nut | Keyed | UL94 V-0 | Plastic | For Female Sockets | Unshielded | Push-Twist | ||||||||
 BULGIN LIMITED | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Dust Tight Water Resistant Waterproof | IP66 IP68 IP69K | Crimp Solder Cup | Free Hanging (In-Line) | Gray | 16 | Power | Plug Housing | Keyed | UL94 V-0 | Plastic | For Male Pins | Unshielded | Push-Twist | Backshell Coupling Nut | ||||||||
 BULGIN LIMITED | Brass | Dust Tight Water Resistant Waterproof | IP66 IP68 IP69K | Crimp Solder Cup | Free Hanging (In-Line) | Silver | 8 | Power | Plug Housing | Keyed | Metal | For Female Sockets | Unshielded | Push-Twist | Backshell Coupling Nut | Nickel | ||||||||
 BULGIN LIMITED | Brass | Dust Tight Water Resistant Waterproof | IP66 IP68 IP69K | Crimp Solder Cup | Panel Mount | Silver | 22 | Power | Receptacle Housing | Bulkhead Rear Side Nut | Keyed | Metal | For Male Pins | Shielded Unshielded | Push-Twist | Nickel | 120 °C | -40 °C | Circular | 3 pcs | Connector Nut Washer | Contacts Not Included | ||
 BULGIN LIMITED | Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT) | Dust Tight Water Resistant Waterproof | IP66 IP68 IP69K | Crimp Solder Cup | Free Hanging (In-Line) | Gray | 3 | PE Power | Plug Housing | Keyed | UL94 V-0 | Plastic | For Male Pins | Unshielded | Push-Twist | Backshell Coupling Nut |
