93PR250KLF

Active

TT Electronics/BI

TRIMMER 250K OHM 1W PC PIN TOP

Search across all available documentation for this part.

Active

TT Electronics/BI

TRIMMER 250K OHM 1W PC PIN TOP

Technical Specifications

Parameters and characteristics commom to parts in this series

TRIMMER 10K OHM 1W PC PIN TOP

Part	Number of Turns	Adjustment Type	Temperature Coefficient	Size / Dimension	Size / Dimension [diameter]	Size / Dimension [diameter]	Resistive Material	Termination Style	Tolerance	Mounting Type	Resistance	Power (Watts)
TT Electronics/BI 93PR10KLF	1	Top Adjustment	100 ppm/°C	Round	0.5 in	0.5 in	Cermet	PC Pins	10 %	Through Hole	10000 Ohms	1 W
TT Electronics/BI 93PR1MEGLF	1	Top Adjustment	100 ppm/°C	Round	0.5 in	0.5 in	Cermet	PC Pins	10 %	Through Hole	1 MOhms	1 W
TT Electronics/BI 93PR250KLF	1	Top Adjustment	100 ppm/°C	Round	0.5 in	0.5 in	Cermet	PC Pins	10 %	Through Hole	250 kOhms	1 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

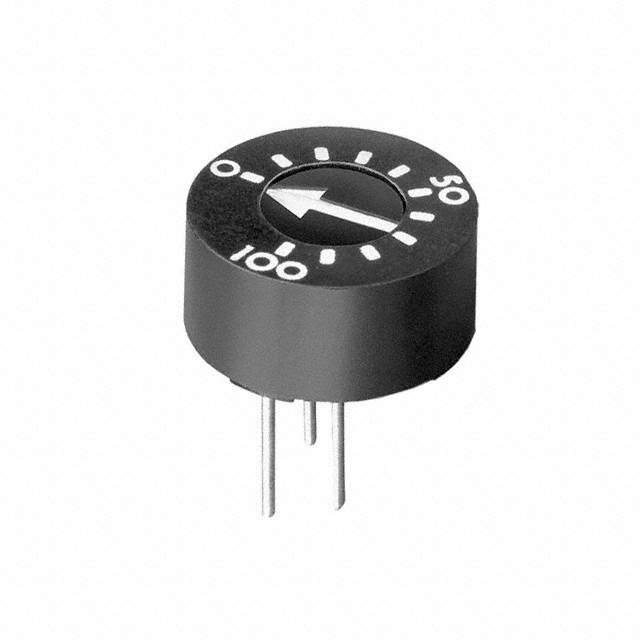

250 kOhms 1W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment

Technical documentation and resources
