1N4148UBD

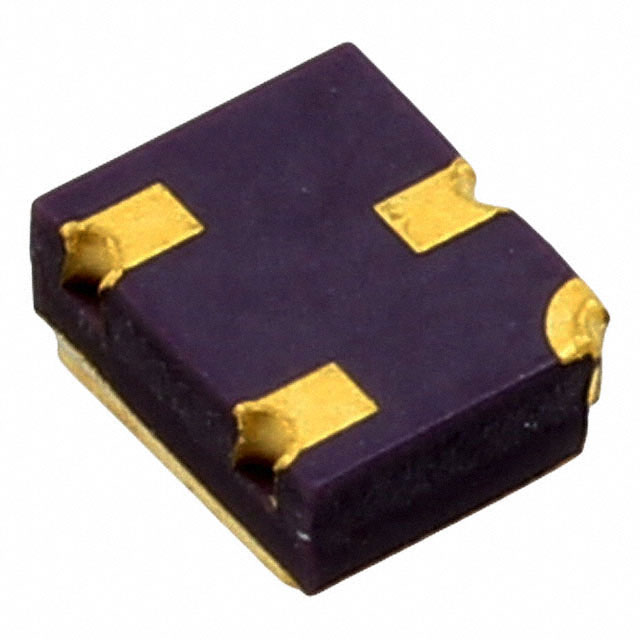

ActiveDIODE ARRAY 1 PAIR SERIES CONNECTION 75V, 200MA SURFACE MOUNT 3-SMD, NO LEAD
Deep-Dive with AI
Search across all available documentation for this part.
1N4148UBD
ActiveDIODE ARRAY 1 PAIR SERIES CONNECTION 75V, 200MA SURFACE MOUNT 3-SMD, NO LEAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1N4148UBD | 1N4148UBD-Switching-Diode Series |
|---|---|---|
| Current - Average Rectified (Io) (per Diode) | - | 200 mA |
| Current - Reverse Leakage @ Vr | - | 500 nA |
| Diode Configuration | - | 1 Pair Series Connection |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature - Junction | - | 200 C |
| Operating Temperature - Junction | - | -65 C |
| Package / Case | - | 3-SMD, No Lead |
| Reverse Recovery Time (trr) | - | 5 ns |
| Speed | - | Any Speed |
| Speed | - | 200 mA |
| Supplier Device Package | - | UB |
| Technology | - | Standard |
| Voltage - DC Reverse (Vr) (Max) | - | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.54 | |
| Microchip Direct | N/A | 1 | $ 25.54 | |
| 100 | $ 23.71 | |||
| 500 | $ 22.80 | |||
| 1000 | $ 21.52 | |||
| Newark | Each | 100 | $ 23.71 | |
| 500 | $ 22.80 | |||
1N4148UBD-Switching-Diode Series
Diode Array 1 Pair Series Connection 75V, 200mA Surface Mount 3-SMD, No Lead
| Part | Mounting Type | Current - Reverse Leakage @ Vr | Speed | Speed | Reverse Recovery Time (trr) | Voltage - DC Reverse (Vr) (Max) [Max] | Package / Case | Technology | Current - Average Rectified (Io) (per Diode) | Supplier Device Package | Diode Configuration | Operating Temperature - Junction [Max] | Operating Temperature - Junction [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology 1N4148UBD | Surface Mount | 500 nA | Any Speed | 200 mA | 5 ns | 75 V | 3-SMD, No Lead | Standard | 200 mA | UB | 1 Pair Series Connection | 200 C | -65 C |
Microchip Technology 1N4148UBD |
Description
General part information
1N4148UBD-Switching-Diode Series
This 1N4148UB switching/signal diode features ceramic bodied construction for military grade products per MIL-PRF-19500/116. This small low capacitance diode, with very fast switching speeds, is featured in a surface mount UB package with various polarities available. Microsemi also offers a variety of other switching/signal diodes.
