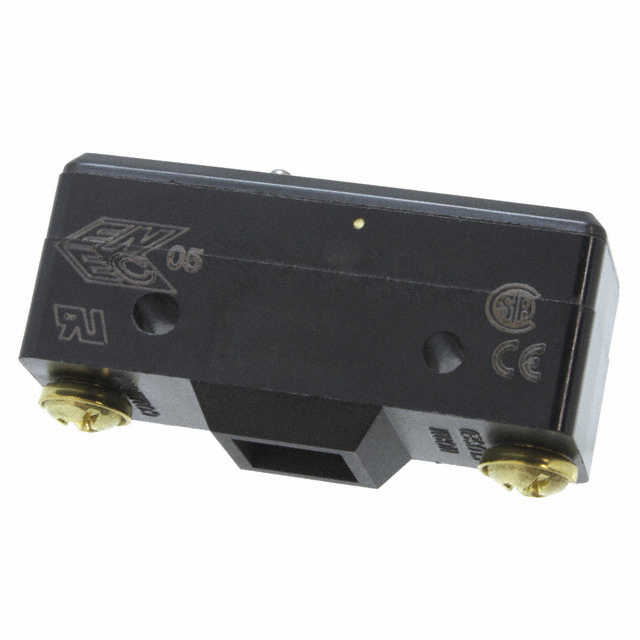

WA-2R-A2

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 20A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPST-NC 20A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SNAP ACT SPST-NC 20A 125V

Part	Circuit	Differential Travel	Differential Travel	Pretravel	Pretravel	Voltage Rating - AC	Switch Function	Current Rating (Amps)	Actuator Type	Mounting Type	Operating Force [Min]	Operating Force [Max]	Release Force	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Operating Position	Operating Position	Termination Style	Mechanical Life	Voltage Rating - DC
Honeywell Sensing and Productivity Solutions WA-2R-A21	SPST-NC	0.007 in	0.18 mm	0.05 in	1.27 mm	125 V	On-Mom	20 A	Round (Pin Plunger)	Chassis Mount	397 gf	624 gf	283 gf	85 °C	-55 °C	0.25 mm	0.01 in	0.64 in	16.3 mm	Screw Terminal	20000000 Cycles
Honeywell Sensing and Productivity Solutions WA-2R-A2	SPST-NC	0.007 in	0.18 mm	0.05 in	1.27 mm	125 V	On-Mom	20 A, 500 mA	Round (Pin Plunger)	Chassis Mount	397 gf	624 gf	283 gf	85 °C	-55 °C	0.25 mm	0.01 in	0.64 in	16.3 mm	Screw Terminal	20000000 Cycles	125 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPST-NC Chassis Mount
