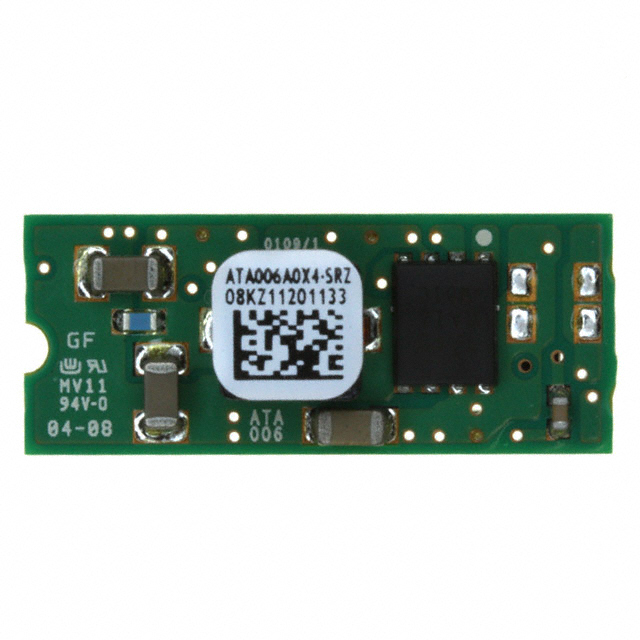

ATA006A0X4-SRZ

OmniOn Power™

DC DC CONVERTER 0.8-5.5V 33W

Search across all available documentation for this part.

OmniOn Power™

DC DC CONVERTER 0.8-5.5V 33W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATA006A0X4-SRZ	ATA006 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	6 A	6 A
Efficiency	89 %	89 %
Features	Remote On/Off, UVLO, OCP, OTP	Remote On/Off, UVLO, OCP, OTP
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-SMD Module	6-SMD Module, 6-SIP Module
Power (Watts)	33 W	33 W
Size / Dimension [x]	1.1 "	1 - 1.1 "
Size / Dimension [x]	27.9 mm	25.4 - 27.9 mm
Size / Dimension [y]	11.4 mm	6.7 - 11.4 mm
Size / Dimension [y]	0.45 in	0.26 - 0.45 in
Size / Dimension [z]	0.29 "	0.29 - 0.5 "
Size / Dimension [z]	7.2 mm	7.2 - 12.7 mm
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	8.3 V	8.3 V
Voltage - Output 1 [Max]	5.5 V	5.5 V
Voltage - Output 1 [Min]	0.8 V	0.8 V

DC DC CONVERTER 0.8-5.5V 33W

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Control Features	Applications	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Type	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]
OmniOn Power™ ATA006A0X4-SRZ	Surface Mount	85 °C	-40 °C	33 W	6-SMD Module	1	14 V	Active High, Enable	ITE (Commercial)	6 A	0.8 V	5.5 V	89 %	Non-Isolated PoL Module	OCP, OTP, Remote On/Off, UVLO	1.1 "	27.9 mm	0.29 "	11.4 mm	0.45 in	7.2 mm	8.3 V
OmniOn Power™ ATA006A0XZ	Through Hole	85 °C	-40 °C	33 W	6-SIP Module	1	14 V	Active Low, Enable	ITE (Commercial)	6 A	0.8 V	5.5 V	89 %	Non-Isolated PoL Module	OCP, OTP, Remote On/Off, UVLO	1 in	25.4 mm	0.5 in	6.7 mm	0.26 "	12.7 mm	8.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	400	$ 11.14

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 6A 8.3V - 14V Input

Technical documentation and resources

No documents available
