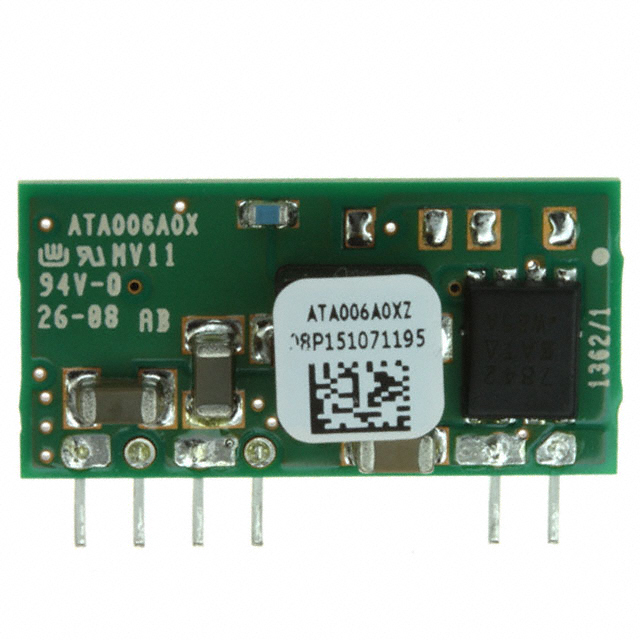

ATA006A0XZ

Active

OmniOn Power™

DC DC CONVERTER 0.8-5.5V 33W

Search across all available documentation for this part.

Active

OmniOn Power™

DC DC CONVERTER 0.8-5.5V 33W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATA006A0XZ	ATA006 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	6 A	6 A
Efficiency	89 %	89 %
Features	Remote On/Off, UVLO, OCP, OTP	Remote On/Off, UVLO, OCP, OTP
Mounting Type	Through Hole	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-SIP Module	6-SMD Module, 6-SIP Module
Power (Watts)	33 W	33 W
Size / Dimension [x]	25.4 mm	25.4 - 27.9 mm
Size / Dimension [x]	1 in	1 - 1.1 "
Size / Dimension [y]	6.7 mm	6.7 - 11.4 mm
Size / Dimension [y]	0.26 "	0.26 - 0.45 in
Size / Dimension [z]	12.7 mm	7.2 - 12.7 mm
Size / Dimension [z]	0.5 in	0.29 - 0.5 "
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	14 V	14 V
Voltage - Input (Min) [Min]	8.3 V	8.3 V
Voltage - Output 1 [Max]	5.5 V	5.5 V
Voltage - Output 1 [Min]	0.8 V	0.8 V

DC DC CONVERTER 0.8-5.5V 33W

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Package / Case	Number of Outputs	Voltage - Input (Max) [Max]	Control Features	Applications	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Type	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input (Min) [Min]
OmniOn Power™ ATA006A0X4-SRZ	Surface Mount	85 °C	-40 °C	33 W	6-SMD Module	1	14 V	Active High, Enable	ITE (Commercial)	6 A	0.8 V	5.5 V	89 %	Non-Isolated PoL Module	OCP, OTP, Remote On/Off, UVLO	1.1 "	27.9 mm	0.29 "	11.4 mm	0.45 in	7.2 mm	8.3 V
OmniOn Power™ ATA006A0XZ	Through Hole	85 °C	-40 °C	33 W	6-SIP Module	1	14 V	Active Low, Enable	ITE (Commercial)	6 A	0.8 V	5.5 V	89 %	Non-Isolated PoL Module	OCP, OTP, Remote On/Off, UVLO	1 in	25.4 mm	0.5 in	6.7 mm	0.26 "	12.7 mm	8.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 5.5V 6A 8.3V - 14V Input
