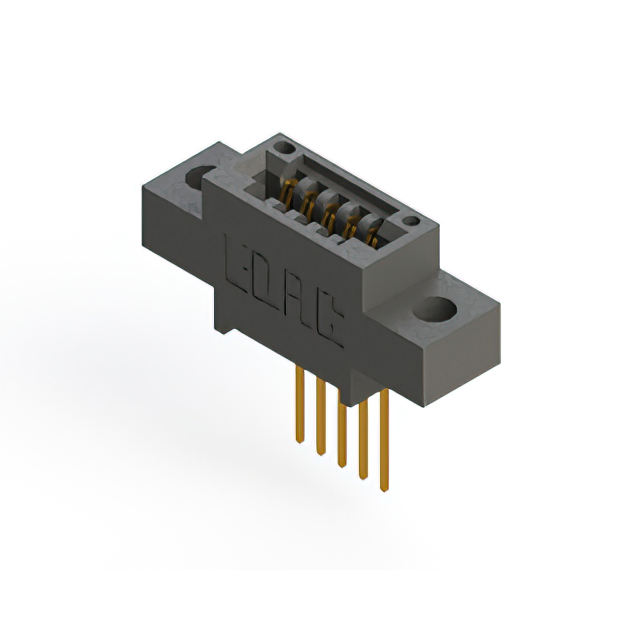

395-005-540-604
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-005-540-604
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-005-540-604 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
395-005 Series
...
| Part | Pitch [x] | Pitch [x] | Termination | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Positions/Bay/Row [custom] | Color | Material - Insulation | Read Out | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Type | Contact Material | Termination Rows | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Wire Wrap | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | |||
EDAC Inc. | 2.54 mm | 0.1 in | Wire Wrap | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole Right Angle | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole Right Angle | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | |
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
EDAC Inc. | 2.54 mm | 0.1 in | Solder | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | Top Mount Opening Unthreaded | 0.156 in | 3.96 mm | |
EDAC Inc. | 2.54 mm | 0.1 in | Wire Wrap | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 5 | Black | Polyester Thermoplastic | Single | Through Hole | -40 °C | 105 ░C | Gold | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-005 Series
5 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
