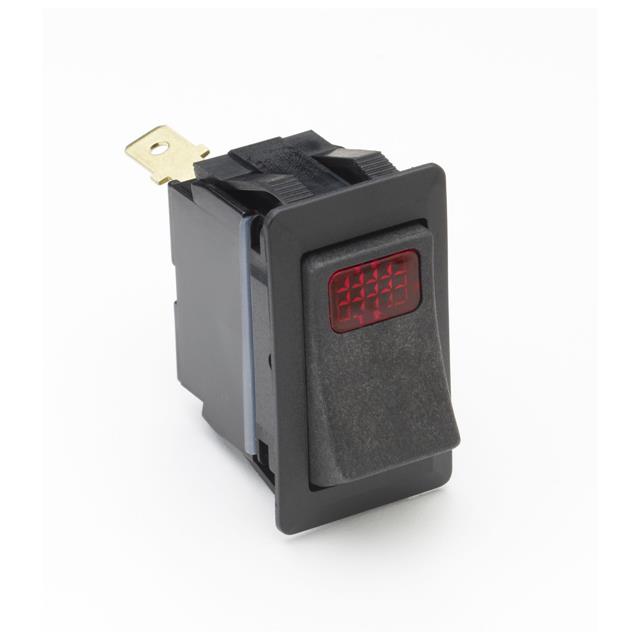

58328-04
ActiveCole Hersee
SWITCH ROCKER SPST 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
58328-04
ActiveCole Hersee
SWITCH ROCKER SPST 25A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 58328-04 | 58328 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Concave (Curved) - Illuminated | Concave (Curved) - Illuminated |
| Circuit | SPST | SPST |
| Color - Actuator/Cap | Black | Black |
| Current Rating (Amps) | 25 A | 25 A |
| Illumination Type, Color | Incandescent, Red | Incandescent, Red, Green |
| Illumination Voltage (Nominal) | 12 VDC | 12 VDC |
| Ingress Protection | IP66 | IP66 |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 36.83 mm | 36.83 mm |
| Panel Cutout Dimensions [y] | 21.08 mm | 21.08 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 12 V | 12 V |
58328 Series
SWITCH ROCKER SPST 25A 12V
| Part | Color - Actuator/Cap | Current Rating (Amps) | Illumination Voltage (Nominal) | Actuator Marking | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Ingress Protection | Switch Function | Voltage Rating - DC | Circuit | Illumination Type, Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cole Hersee 58328-04 | Black | 25 A | 12 VDC | No Marking | Quick Connect - 0.250" (6.3mm) | 21.08 mm | 36.83 mm | Concave (Curved) - Illuminated | IP66 | On-Off | 12 V | SPST | Incandescent, Red | Panel Mount, Snap-In |
Cole Hersee 58328-11 | Black | 25 A | 12 VDC | No Marking | Quick Connect - 0.250" (6.3mm) | 21.08 mm | 36.83 mm | Concave (Curved) - Illuminated | IP66 | On-Off | 12 V | SPST | Green, Incandescent | Panel Mount, Snap-In |
Cole Hersee 58328-02 | Black | 25 A | 12 VDC | No Marking | Quick Connect - 0.250" (6.3mm) | 21.08 mm | 36.83 mm | Concave (Curved) - Illuminated | IP66 | On-Off | 12 V | SPST | Green, Incandescent | Panel Mount, Snap-In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.11 | |
| 10 | $ 23.71 | |||
| 25 | $ 22.65 | |||
| 50 | $ 21.45 | |||
| 100 | $ 20.65 | |||
| 250 | $ 19.32 | |||
| 500 | $ 16.49 | |||
Description
General part information
58328 Series
Rocker Switch SPST 25A (DC) Panel Mount, Snap-In
