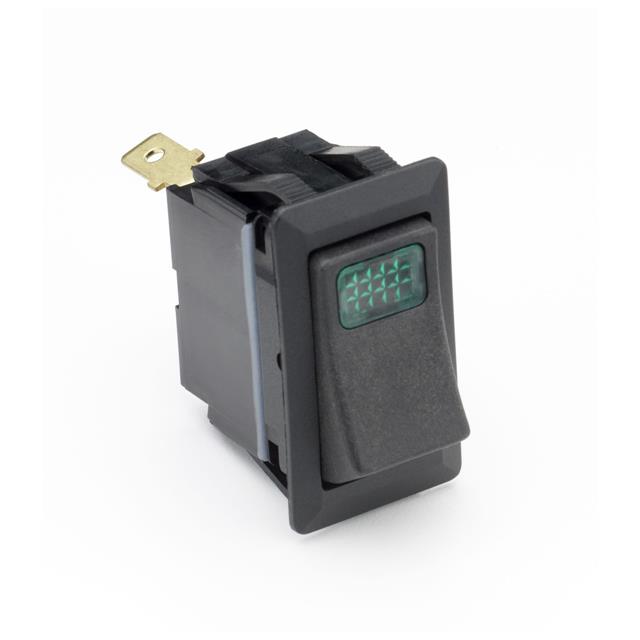

58328-11

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPST 25A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 25A (DC) Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	58328-11	58328 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated	Concave (Curved) - Illuminated
Circuit	SPST	SPST
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	25 A	25 A
Illumination Type, Color	Green, Incandescent	Incandescent, Red, Green
Illumination Voltage (Nominal)	12 VDC	12 VDC
Ingress Protection	IP66	IP66
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	12 V	12 V

SWITCH ROCKER SPST 25A 12V

Part	Color - Actuator/Cap	Current Rating (Amps)	Illumination Voltage (Nominal)	Actuator Marking	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Type	Ingress Protection	Switch Function	Voltage Rating - DC	Circuit	Illumination Type, Color	Mounting Type
Cole Hersee 58328-04	Black	25 A	12 VDC	No Marking	Quick Connect - 0.250" (6.3mm)	21.08 mm	36.83 mm	Concave (Curved) - Illuminated	IP66	On-Off	12 V	SPST	Incandescent, Red	Panel Mount, Snap-In
Cole Hersee 58328-11	Black	25 A	12 VDC	No Marking	Quick Connect - 0.250" (6.3mm)	21.08 mm	36.83 mm	Concave (Curved) - Illuminated	IP66	On-Off	12 V	SPST	Green, Incandescent	Panel Mount, Snap-In
Cole Hersee 58328-02	Black	25 A	12 VDC	No Marking	Quick Connect - 0.250" (6.3mm)	21.08 mm	36.83 mm	Concave (Curved) - Illuminated	IP66	On-Off	12 V	SPST	Green, Incandescent	Panel Mount, Snap-In
