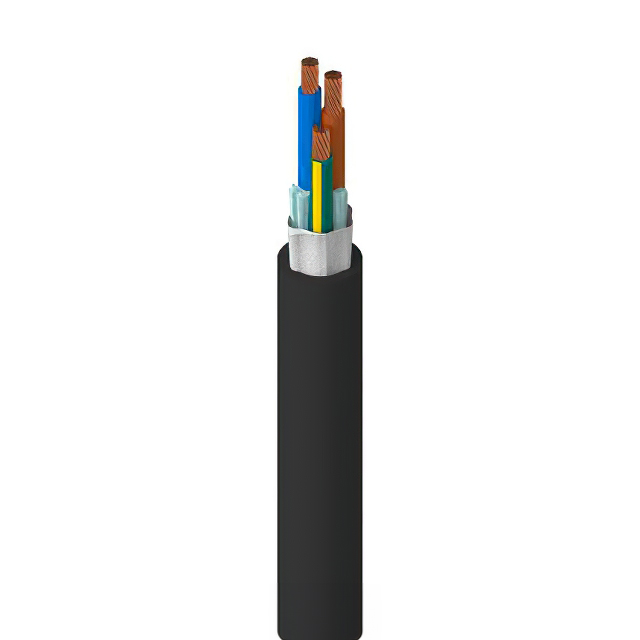

Specification	19509 B59250

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand Count	42
Conductor Strand Gauge	34
Jacket (Insulation) Diameter	0.315 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.038 in
Jacket Color	Black
Length	250 ft
Number of Conductors	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Wire Gauge	18 AWG

19509 Series

Part	Length	Wire Gauge	Cable Type	Jacket (Insulation) Material	Jacket Color	Conductor Strand Gauge	Conductor Strand Count	Conductor Material	Conductor Insulation	Operating Temperature (Min)	Operating Temperature (Max)	Number of Conductors	Jacket (Insulation) Diameter	Jacket (Insulation) Thickness
Belden Inc. 19509 B59250	250 ft	18 AWG	Conductor Multi	Poly-Vinyl Chloride (PVC)	Black	34	42	Bare Copper	Poly-Vinyl Chloride (PVC)	-40 °C	105 °C	3	0.315 in	0.038 in
