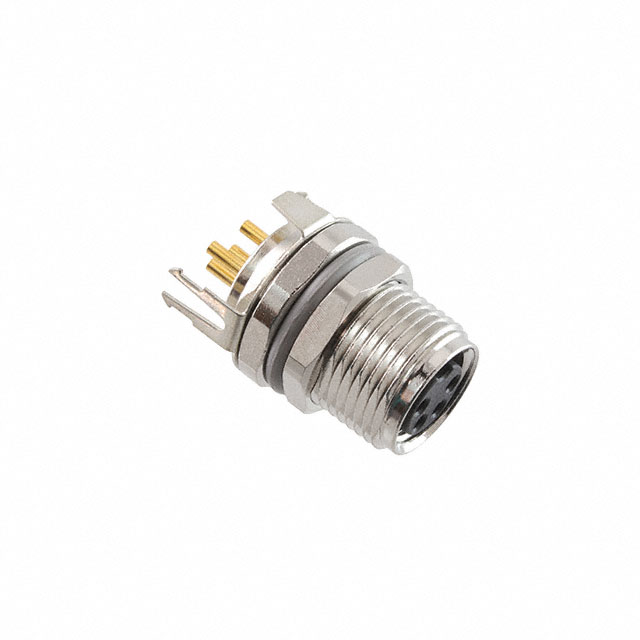

T4041037041-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T4041037041-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4041037041-000 | T40410 Series |
|---|---|---|
| Applications | Telecommunications, Automation Control, Industrial | Telecommunications, Automation Control, Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Current Rating (Amps) | 3 A | 3 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead | Bulkhead |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M8-4 | M8-4, M8-3 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
| Voltage Rating | 30 VDC | 30 - 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.82 | |
| 10 | $ 6.81 | |||
| 25 | $ 6.63 | |||
| 50 | $ 6.45 | |||
| 100 | $ 6.06 | |||
| 250 | $ 6.02 | |||
| 500 | $ 5.67 | |||
| 1000 | $ 5.06 | |||
T40410 Series
CONN RCPT FMALE 4POS GOLD SOLDER
| Part | Mounting Type | Connector Type | Voltage Rating | Mounting Feature | Color | Shell Size - Insert | Number of Positions | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Primary Material | Shell Finish | Applications | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Ingress Protection | Termination | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4041037041-000 | Panel Mount, Through Hole | Receptacle, Female Sockets | 30 VDC | Bulkhead | Silver | M8-4 | 4 | 3 A | 85 °C | -40 °C | A | Metal | Nickel | Automation Control, Industrial, Telecommunications | Shielded | 3 µin | 0.076 µm | Gold | IP67 - Dust Tight, Waterproof | Solder | Copper Alloy |
TE Connectivity AMP Connectors T4041017031-000 | Panel Mount, Through Hole | Receptacle, Female Sockets | 60 VDC | Bulkhead | Silver | M8-3 | 3 A | 85 °C | -40 °C | A | Metal | Nickel | Automation Control, Industrial, Telecommunications | 3 µin | 0.076 µm | Gold | IP67 - Dust Tight, Waterproof | Solder | Copper Alloy |
Description
General part information
T40410 Series
4 Position Circular Connector Receptacle, Female Sockets Solder
