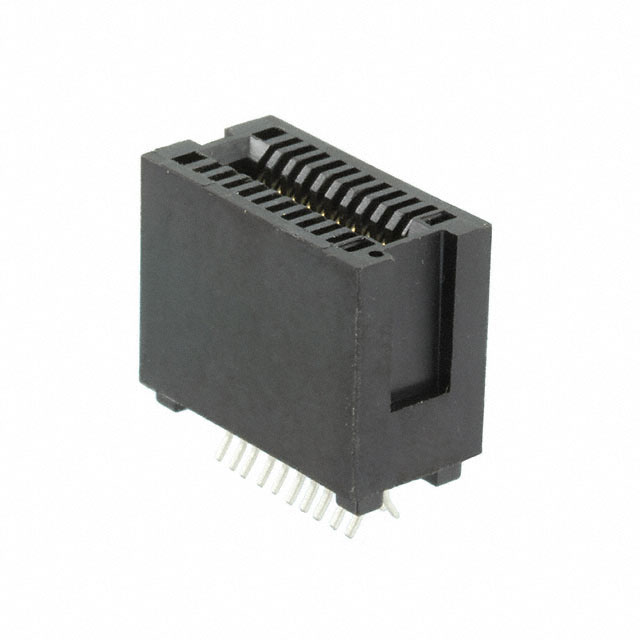

ANB10DHRN

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 20POS 0.050

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN EDGE DUAL FMALE 20POS 0.050

Technical Specifications

Parameters and characteristics for this part

Specification	ANB10DHRN

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Type	Hairpin Bellows
Features	Card Extender
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	20
Number of Positions/Bay/Row [custom]	10
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Read Out	Dual
Termination	Solder

Part	Contact Type	Number of Positions	Contact Finish	Card Type	Material - Insulation	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Type	Gender	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Termination	Number of Rows	Contact Material	Card Thickness	Card Thickness
Sullins Connector Solutions ANB10DHRN	Hairpin Bellows	20	Gold	Non Specified - Dual Edge	Polyphenylene Sulfide (PPS)	Dual	-65 ░C	150 °C	Card Extender	Board Edge Straddle Mount	Female	10	0.05 in	1.27 mm	Solder	2	Beryllium Copper	0.062 in	1.57 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	128	$ 20.92

General part information

20 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm)
