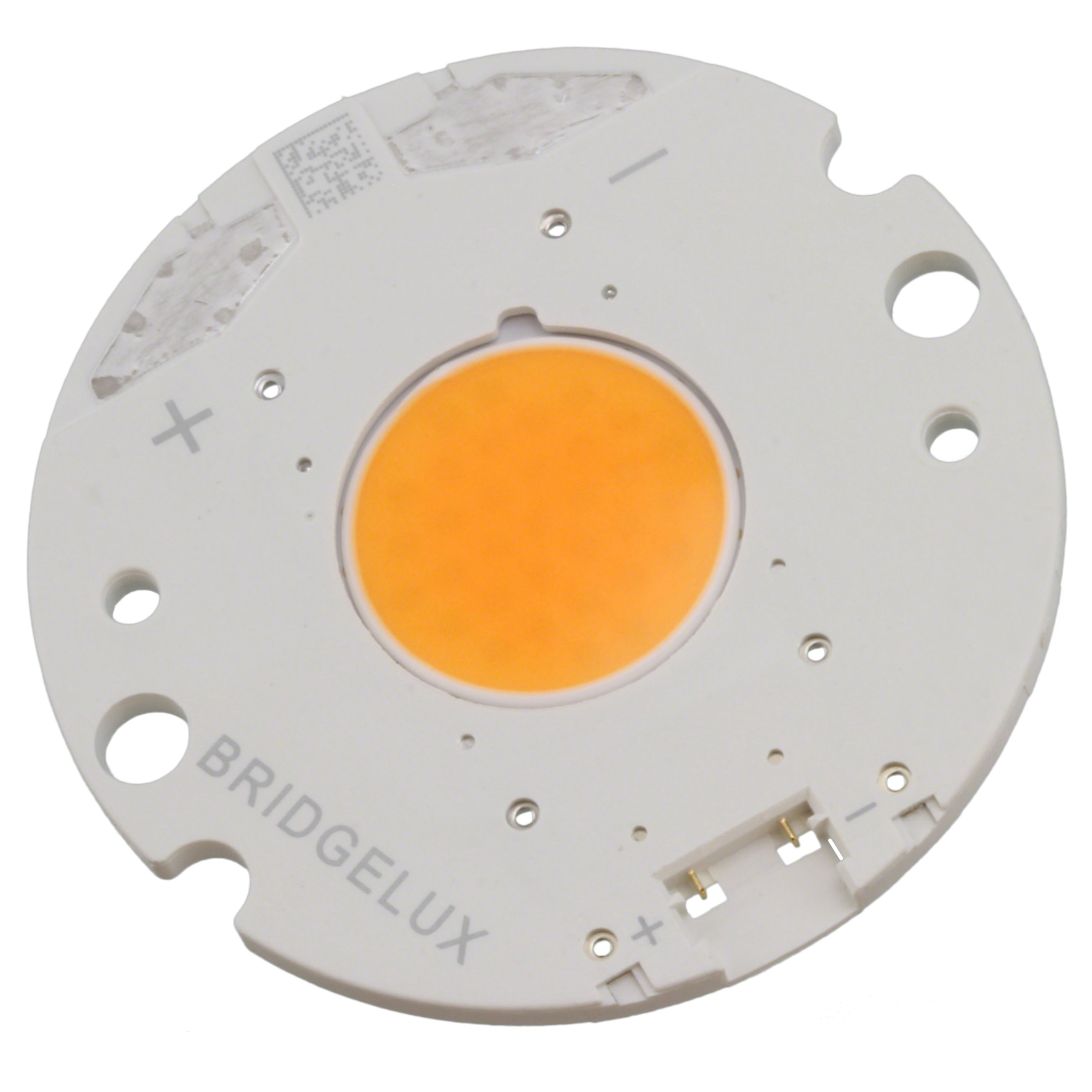

BXRC-27H2000-C-22

Obsolete

BRIDGELUX

LED COB DECOR WM WH ROUND 2700K

BXRC-27H2000-C-22

Obsolete

BRIDGELUX

LED COB DECOR WM WH ROUND 2700K

Description Specifications Series Pricing CAD Documents

Description

General part information

BXRC-27 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Décor Series™ Ultra Vero® 13 White, Warm Round

Technical Specifications

Parameters and characteristics for this part

Specification	BXRC-27H2000-C-22

CCT (K)	2700 K
CCT Description	2-Step MacAdam Ellipse
Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	97
Current - Max	1.5 A
Current - Test	500 mA
Features	With Connector
Height	1.9 mm
Lens Type	Flat
Light Emitting Surface (LES) Diameter	13.2 mm
Lumens/Watt	63 lm/W
Luminous Flux (Typical)	992 lm
Size / Dimension Diameter	36.2 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	31.5 V

BXRC-27 Series

...

Part	Light Emitting Surface (LES) Diameter	Features	CRI (Color Rendering Index)	Viewing Angle	CCT (K)	CCT Description	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Type	Lens Type	Lumens/Watt	Color	Height	Size / Dimension Diameter	Current - Max	Temperature - Test	Luminous Flux (Typical)	CRI (Color Rendering Index) (Typ)
BRIDGELUX BXRC-27H2000-C-22	13.2 mm	With Connector	97	120 °	2700 K	2-Step MacAdam Ellipse	31.5 V	500 mA	Round	Chip On Board (COB)	Flat	63 lm/W	Warm White	1.9 mm	36.2 mm	1.5 A	85 °C	992 lm
BRIDGELUX BXRC-27H1000-C-73-SE	9.9 mm			120 °	2700 K	3-Step MacAdam Ellipse	33.8 V	360 mA	Round	Chip On Board (COB)	Flat	96 lm/W	Warm White	3.6 mm	30.8 mm	720 mA	85 °C	1173 lm	97
BRIDGELUX BXRC-27H1000-B-23	9.9 mm	With Connector		120 °	2700 K	3-Step MacAdam Ellipse	25.8 V	350 mA	Round	Chip On Board (COB)	Flat	70 lm/W	Warm White	1.9 mm	20 mm	1.05 A	85 °C	632 lm	97
BRIDGELUX BXRC-27H1000-C-72-SE	9.9 mm			120 °	2700 K	2-Step MacAdam Ellipse	33.8 V	360 mA	Round	Chip On Board (COB)	Flat	96 lm/W	Warm White	3.6 mm	30.8 mm	720 mA	85 °C	1173 lm	97
BRIDGELUX BXRC-27G1000-D-72-SE	9.9 mm		90	120 °	2700 K	2-Step MacAdam Ellipse	25.3 V	350 mA	Round	Chip On Board (COB)	Flat	111 lm/W	Warm White	3.6 mm	30.8 mm	700 mA	85 °C	983 lm
BRIDGELUX BXRC-27G1000-C-72-SE	9.9 mm		90	120 °	2700 K	2-Step MacAdam Ellipse	33.8 V	360 mA	Round	Chip On Board (COB)	Flat	111 lm/W	Warm White	3.6 mm	30.8 mm	720 mA	85 °C	1353 lm
BRIDGELUX BXRC-27G1000-C-73	9.9 mm	With Connector	90	120 °	2700 K	3-Step MacAdam Ellipse	34.8 V	360 mA	Starboard	Chip On Board (COB)	Flat	124 lm/W	Warm White	1.9 mm	20 mm	720 mA	25 °C	1548 lm
BRIDGELUX BXRC-27H2000-D-72	13.2 mm		97	120 °	2700 K	2-Step MacAdam Ellipse	30.9 V	500 mA	Round	Chip On Board (COB)	Flat	108 lm/W	Warm White	1.9 mm	36.2 mm	1 A	85 °C	1674 lm
BRIDGELUX BXRC-27G2000-B-72-SE	13.4 mm		90	120 °	2700 K	2-Step MacAdam Ellipse	33.9 V	450 mA	Round	Chip On Board (COB)	Flat	116 lm/W	Warm White	3.6 mm	36.2 mm	900 mA	85 °C	1776 lm
BRIDGELUX BXRC-27H1000-D-72	9.9 mm		97	120 °	2700 K	2-Step MacAdam Ellipse	25.3 V	350 mA	Starboard	Chip On Board (COB)	Flat	105 lm/W	Warm White	1.9 mm	20 mm	700 mA	85 °C	925 lm
