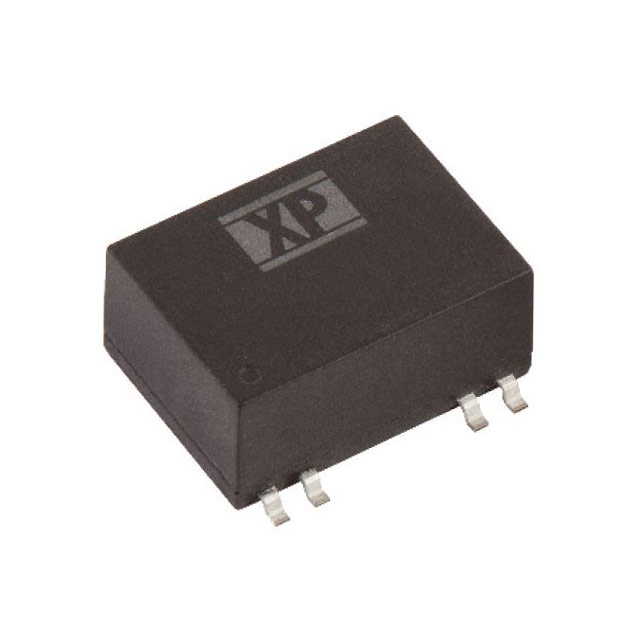

ISU0205S15
ActiveXP POWER
DC DC CONVERTER 15V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISU0205S15
ActiveXP POWER
DC DC CONVERTER 15V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISU0205S15 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 134 mA |
| Efficiency | 81 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 95 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SMD Module, 7 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.75 in |
| Size / Dimension [x] | 19.1 mm |
| Size / Dimension [y] | 0.59 in |
| Size / Dimension [y] | 15 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 12 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 27.19 | |
| 5 | $ 26.37 | |||
| 10 | $ 25.56 | |||
| 25 | $ 24.47 | |||
| 100 | $ 22.84 | |||
| 500 | $ 18.72 | |||
Description
General part information
ISU0205 Series
Isolated Module DC DC Converter 1 Output 15V 134mA 4.5V - 12V Input
