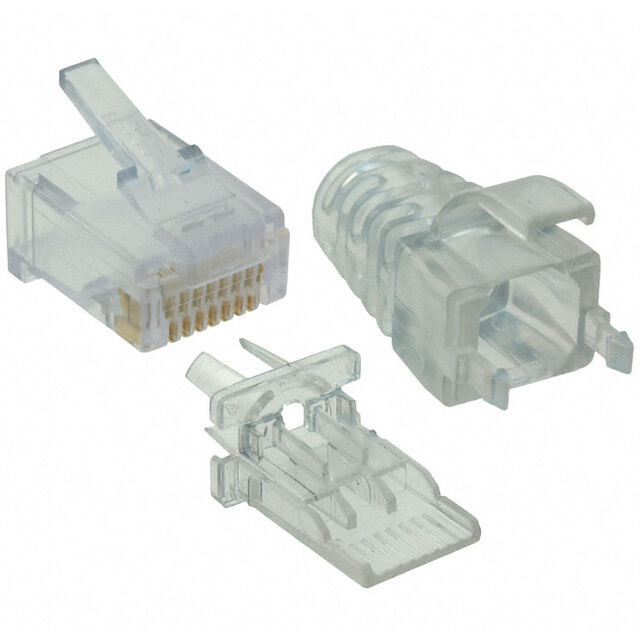

Specification	SS-39100-011

Cable Type	Solid or Stranded Wires, Round Cable
Color	Clear Boot, Translucent - Clear, Translucent - Clear; Clear Boot
Connector Type	Plug, Ethernet, RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Copper Alloy
Current Rating	1.5 A
Features	Molded Boot
Housing Material	PC, Polycarbonate
Length	1.47 in
Number of Contacts	8
Number of Positions	8
Ratings	Cat6a
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VDC

SS-39100 Series

Part	Length	Connector Type	Color	Shielding	Termination	Number of Positions	Number of Contacts	Cable Type	Ratings	Features	Housing Material	Contact Material	Contact Finish Thickness	Current Rating	Contact Finish	Voltage Rating	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)
Bel Fuse Inc. SS-39100-011	1.47 in	Ethernet Plug RJ45	Clear Boot Translucent - Clear Translucent - Clear; Clear Boot	Unshielded	IDC	8	8	Round Cable Solid or Stranded Wires	Cat6a	Molded Boot	PC Polycarbonate	Copper Alloy	50 µin	1.5 A	Gold	150 VDC
Bel Fuse Inc. SS-39100-017	1.47 in	Ethernet Plug RJ45	Clear Boot Translucent - Clear Translucent - Clear; Clear Boot	Unshielded	IDC	8	8	Round Cable Solid or Stranded Wires	Cat6	Molded Boot	PC Polycarbonate	Copper Alloy	50 µin	1.5 A	Gold	150 VDC
Bel Fuse Inc. SS-39100-020	1.47 in	Ethernet Plug RJ45	Clear Boot Translucent - Clear Translucent - Clear; Clear Boot	Unshielded	IDC	8	8	Round Cable Solid or Stranded Wires	Cat6a	Molded Boot	PC Polycarbonate	Copper Alloy	50 µin	1.5 A	Gold	150 VDC
Bel Fuse Inc. SS-39100-007	1.467 in	Ethernet Plug RJ45	Translucent - Clear	Unshielded	IDC	8	8	Round Cable Solid or Stranded Wires	Cat6	Molded Boot	PC Polycarbonate	Copper Alloy	50 µin	1.5 A	Gold	150 VDC
Bel Fuse Inc. SS-39100-002	0.885 "	Ethernet Plug RJ45	Translucent - Clear	Unshielded	IDC	8	8	Round Cable Solid or Stranded Wires	Cat6		PC Polycarbonate	Phosphor Bronze	50 µin	1.5 A	Gold	150 VDC
Bel Fuse Inc. SS-39100-028	1.74 in	Ethernet Plug RJ45	Translucent - Clear	Unshielded	IDC	8	8	Round Cable Solid or Stranded Wires	Cat6a	Cable Clamp Molded Boot	PC Polycarbonate	Copper Alloy	50 µin	1.5 A	Gold	150 VDC
Bel Fuse Inc. SS-39100-016	1.47 in	Ethernet Plug RJ45	Translucent - Clear	Unshielded	IDC	8	8	Round Cable Solid or Stranded Wires	Cat6	Molded Boot	PC Polycarbonate	Copper Alloy	50 µin	1.5 A	Gold	150 VDC
Bel Fuse Inc. SS-39100-029	0.89 in	Ethernet Plug RJ45	Translucent - Clear	Unshielded	IDC	8	8	Round Cable Solid or Stranded Wires	Cat6a		PC Polycarbonate	Copper Alloy	50 µin	1.5 A	Gold	150 VDC	18 AWG	20.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SS-39100-011 | Datasheet
