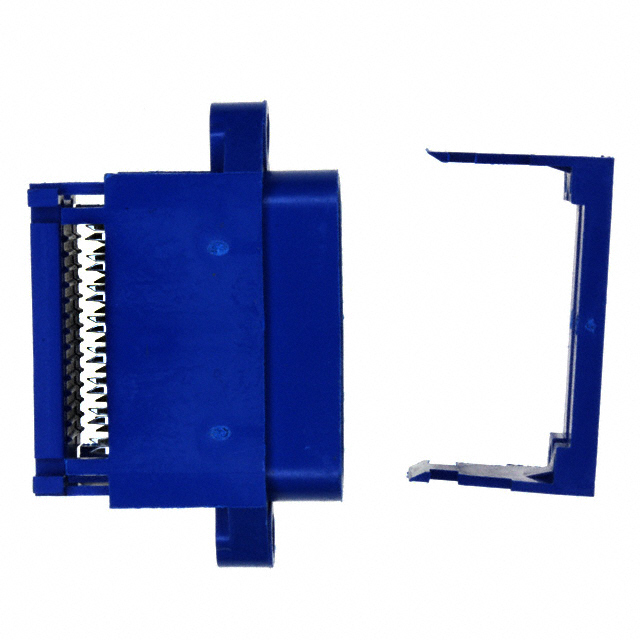

CWR-180-15-0203

Active

CW Industries

CONN D-SUB RCPT 15POS IDC

Deep-Dive with AI

Search across all available documentation for this part.

CWR-180-15-0203

Active

CW Industries

CONN D-SUB RCPT 15POS IDC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CWR-180-15-0203

Color	Blue
Connector Style	D-Sub
Connector Type	Receptacle, Male Pins
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Thermoplastic
Features	Feed Through, Strain Relief
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	IDC, Ribbon Cable
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	27.5 AWG

CWR-180 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Mounting Type	Flange Feature	Material Flammability Rating	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Type	Connector Style	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Features	Number of Positions	Shell Size, Connector Layout	Shell Size, Connector Layout
CW Industries CWR-180-25-0203	B DB	3	IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	2.54 µm	100 µin	Male Pins Receptacle	Tin	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief
CW Industries CWR-180-09-0021	DE E	1	IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	0.76 Ám	30 Áin	Male Pins Receptacle	Gold	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	9
CW Industries CWR-180-15-0203			IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	2.54 µm	100 µin	Male Pins Receptacle	Tin	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	15	2
CW Industries CWR-180-15-0003			IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	2.54 µm	100 µin	Male Pins Receptacle	Tin	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	15	2
CW Industries CWR-180-37-0003			IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	2.54 µm	100 µin	Male Pins Receptacle	Tin	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	37		4 (DC C)
CW Industries CWR-180-37-0203			IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	2.54 µm	100 µin	Male Pins Receptacle	Tin	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	37		4 (DC C)
CW Industries CWR-180-15-0021			IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	0.76 Ám	30 Áin	Male Pins Receptacle	Gold	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	15	2
CW Industries CWR-180-09-0003	DE E	1	IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	2.54 µm	100 µin	Male Pins Receptacle	Tin	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	9
CW Industries CWR-180-09-0203	DE E	1	IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	2.54 µm	100 µin	Male Pins Receptacle	Tin	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	9
CW Industries CWR-180-09-0000	DE E	1	IDC Ribbon Cable	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	UL94 V-0	2	0.25 Ám	10 Áin	Male Pins Receptacle	Gold	Blue	-55 °C	125 °C	Thermoplastic	Signal	D-Sub	30 AWG	27.5 AWG	Phosphor Bronze	Feed Through Strain Relief	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.92
		10	$ 3.56
		25	$ 3.37
		50	$ 3.29
		100	$ 3.13
		300	$ 2.76

Description

General part information

CWR-180 Series

15 Position D-Sub Receptacle, Male Pins Connector
