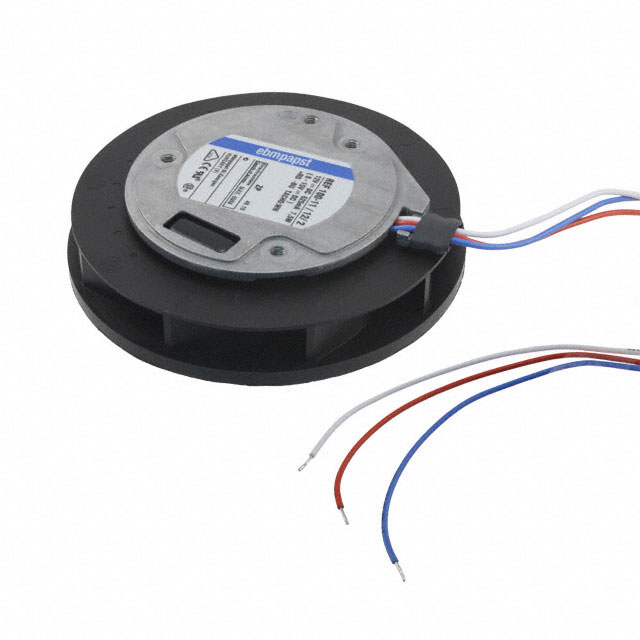

REF100-11/12/2
Activeebm-papst Inc.
FAN IMP MTRZD 100X25MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
REF100-11/12/2
Activeebm-papst Inc.
FAN IMP MTRZD 100X25MM 12VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | REF100-11/12/2 |
|---|---|
| Air Flow | 50.6 CFM |
| Air Flow | 1.42 mł/min |
| Bearing Type | Ball |
| Fan Type | Motorized Impellers |
| Features | Speed Sensor (Tach) |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Plastic, Fiberglass Reinforced |
| Material - Frame | Glass Filled, Plastic |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Min] | -20 C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 7.5 W |
| RPM | 5400 RPM |
| Size / Dimension [diameter] | 100 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 15 V |
| Voltage Range [Min] | 8 VDC |
| Weight | 158.76 g |
| Weight | 0.35 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 85.35 | |
| 10 | $ 77.44 | |||
Description
General part information
REF100 Series
Fan Motorized Impellers 12VDC Round - 100mm Dia Ball 50.6 CFM (1.42mł/min) 3 Wire Leads
