A8504952S14A

Active

Amphenol Interconnect India

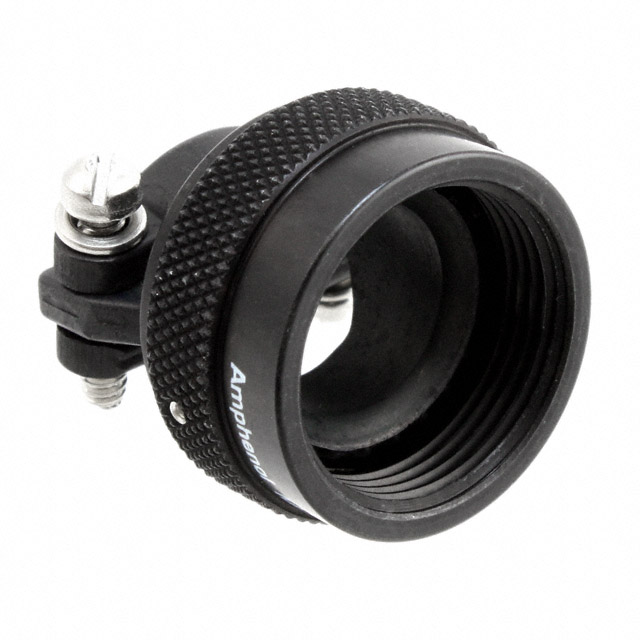

CONN CAB CLAMP SZ14 BLK 7/8-20

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A8504952S14A

Active

Amphenol Interconnect India

CONN CAB CLAMP SZ14 BLK 7/8-20

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A8504952S14A

Cable Exit	180 °
Cable Opening [Max] [custom]	12.19 mm
Cable Opening [Max] [custom]	0.48 in
Cable Opening [Min] [custom]	8.89 mm
Cable Opening [Min] [custom]	0.35 in
Color	Black
Diameter - Outside [diameter]	1.26 in
Diameter - Outside [diameter]	32 mm
Features	Clamp Screws, Self-Locking
For Use With/Related Products	MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400
Material	Aluminum Alloy
Plating	Anodized
Shell Size - Insert	14
Thread Size	7/8-20 UNEF
Type	Cable Clamp

M85049 Series

...

Part	Shell Size - Insert	Cable Exit	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Features	Thread Size	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	Type	Material	Plating	For Use With/Related Products	Cable Opening [Min]	Cable Opening [Min] [diameter]	Cable Opening [Max]	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Shielding	Cable Opening [custom]	Cable Opening [custom]	Primary Material	Shell Size - Insert	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Amphenol Interconnect India A8504952S14A	14	180 °	12.19 mm	0.48 in	8.89 mm	0.35 in	Clamp Screws Self-Locking	7/8-20 UNEF	1.26 in	32 mm	Black	Cable Clamp	Aluminum Alloy	Anodized	MIL-DTL-26482 Series II MIL-DTL-5015 Series 3400 MIL-DTL-83723 Series I III
Amphenol Interconnect India A8504939S13N	13	90 °					Clamp Screws Self-Locking		1.16 in	29.46 mm	Silver	Cable Clamp	Aluminum Alloy	Electroless Nickel	MIL-DTL-38999 Series III IV	4.83 mm	0.19 in	8.38 mm	0.33 in
Amphenol Interconnect India A850493925A	25	90 °					Clamp Screws		1.89 "	48.01 mm	Black	Cable Clamp	Aluminum Alloy	Anodized	MIL-DTL-38999 Series III IV					10.67 mm 21.59 mm	0.42 in 0.85 in
Amphenol Interconnect India A850491155W	28	180 °					Clamp Screws		1.97 in	50.04 mm	Olive Drab	Backshell Cable Clamp	Aluminum Alloy	Cadmium	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III							Environment Resistant	Unshielded	12.7 mm 19.05 mm	0.5 in 0.75 in	Metal
Amphenol Interconnect India A850496314W		90 °							1.05 "	26.67 mm	Olive Drab	Cable Clamp	Aluminum Alloy	Cadmium	MIL-DTL-38999 Series I II								Unshielded	14.73 mm	0.58 in	Metal	12 14
Amphenol Interconnect India A850492567W	32	180 °		1.38 in	25.4 mm	1 in	Clamp Screws		2.22 in	56.4 mm	Olive Drab	Backshell Cable Clamp	Aluminum Alloy	Cadmium	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III								Shielded			Metal		35.05 mm
Amphenol Interconnect India A850492123N08A	23	180 °					Clamp Screws		1.65 "	41.91 mm	Silver	Backshell Cable Clamp	Aluminum Alloy	Electroless Nickel	MIL-DTL-38999 Series III IV						20.57 mm 25.4 mm		Unshielded			Metal	H		0.81 in 1 in
Amphenol Interconnect India A850491017N		180 °		0.58 in	8.89 mm	0.35 in	Clamp Screws		0.98 in	24.9 mm	Silver	Backshell Cable Clamp	Aluminum Alloy	Electroless Nickel	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III							Environment Resistant	Shielded			Metal	12 14	14.73 mm
Amphenol Interconnect India A8504925150W		180 °					Clamp Screws		0.98 in	24.9 mm	Olive Drab	Backshell Cable Clamp	Aluminum Alloy	Cadmium	MIL-DTL-26482 Series II MIL-DTL-5015 MIL-DTL-83723 Series III		0.13 in		0.31 in				Shielded			Metal	12 14			7.87 mm	3.3 mm
Amphenol Interconnect India A8504939S25W	25	90 °					Clamp Screws Self-Locking		1.89 "	48.01 mm	Olive	Cable Clamp	Aluminum Alloy	Cadmium Nickel	MIL-DTL-38999 Series III IV					10.67 mm 21.59 mm	0.42 in 0.85 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.41

Description

General part information

M85049 Series

Black Connector Cable Clamp 7/8-20 UNEF 14
