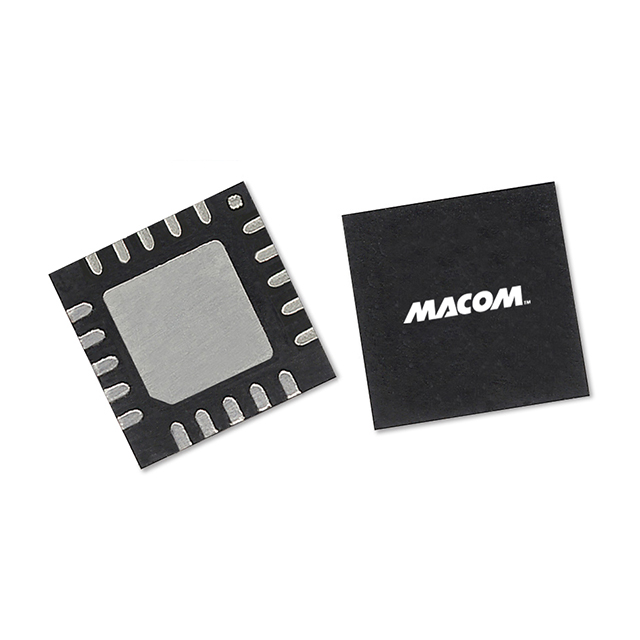

MASW-011120-TR1000
ActiveMACOM Technology Solutions
IC RF SWITCH SPDT 6GHZ 20HQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MASW-011120-TR1000
ActiveMACOM Technology Solutions
IC RF SWITCH SPDT 6GHZ 20HQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MASW-011120-TR1000 |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 30 MHz |
| Isolation | 44 dB |
| Mounting Type | Surface Mount |
| Package / Case | 20-LQFN Exposed Pad |
| RF Type | 5G |
| Supplier Device Package | 20-HQFN (5x5) |
| Voltage - Supply | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 19.80 | |
| 10 | $ 14.39 | |||
| 25 | $ 12.99 | |||
| 100 | $ 11.44 | |||
| 250 | $ 10.69 | |||
| 500 | $ 10.34 | |||
| Digi-Reel® | 1 | $ 19.80 | ||
| 10 | $ 14.39 | |||
| 25 | $ 12.99 | |||
| 100 | $ 11.44 | |||
| 250 | $ 10.69 | |||
| 500 | $ 10.34 | |||
| Tape & Reel (TR) | 1000 | $ 10.34 | ||
Description
General part information
MASW Series
RF Switch IC 5G SPDT 6 GHz 20-HQFN (5x5)
Documents
Technical documentation and resources
