0801626

Active

Phoenix Contact

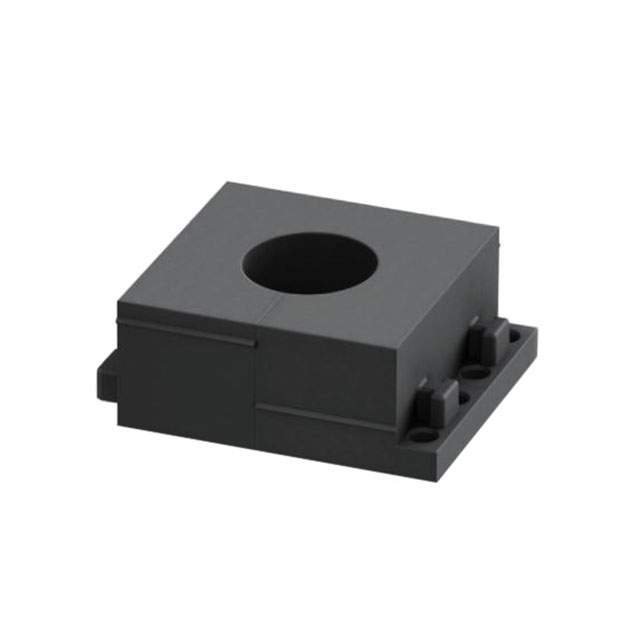

FRAME GROMMET NBR BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0801626

Active

Phoenix Contact

FRAME GROMMET NBR BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0801626	CES-LRG Series

Bushing, Grommet Type	Frame Grommet	Frame Grommet
Color	Black	Black
Diameter - Inside	-	0.906 - 30 in
Diameter - Inside	-	22 mm
Diameter - Inside	-	31 - 32 mm
Diameter - Inside [Max] [diameter]	18 mm	18 - 24 mm
Diameter - Inside [Max] [diameter]	0.709 in	0.591 - 17 in
Diameter - Inside [Min] [diameter]	0.669 in	0.551 - 16 in
Diameter - Inside [Min] [diameter]	17 mm	0.866 - 29 mm
Features	Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking	Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking
For Use With/Related Products	Wires, Cable	Wires, Cable
Material	Nitrile Butadiene Rubber (NBR), Halogen Free	Nitrile Butadiene Rubber (NBR), Halogen Free

CES-LRG Series

FRAME GROMMET NBR BLACK

Part	For Use With/Related Products	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Max] [diameter]	Color	Material	Bushing, Grommet Type	Features	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside
Phoenix Contact 0801626	Cable, Wires	0.669 in	18 mm	17 mm	0.709 in	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant
Phoenix Contact 0801624	Cable, Wires	0.63 in, 16 mm			0.669 in, 17 mm	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant
Phoenix Contact 0801638	Cable, Wires		23 mm	0.866 in		Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	0.906 in	22 mm
Phoenix Contact 0801648	Cable, Wires	1.102 "		28 mm	1.142 "	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	29 mm
Phoenix Contact 0801650	Cable, Wires	1.142 "		29 mm	1.181 "	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	30 mm
Phoenix Contact 0801654	Cable, Wires	1.22 in			1.26 in	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant			31 mm, 32 mm
Phoenix Contact 0801639	Cable, Wires	0.906 in	24 mm	23 mm	0.945 in	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant
Phoenix Contact 0801619	Cable, Wires	0.551 in		14 mm	0.591 in	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	15 mm
Phoenix Contact 0801646	Cable, Wires	1.063 in		27 mm	1.102 in	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	28 mm
Phoenix Contact 0801644	Cable, Wires	1.024 in		26 mm	1.063 "	Black	Halogen Free, Nitrile Butadiene Rubber (NBR)	Frame Grommet	Dust Protected, IP54, Locking Latch, Screw Locking, Water Resistant	27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.08
		10	$ 4.01

Description

General part information

CES-LRG Series

Frame Grommet 0.669" ~ 0.709" (17.00mm ~ 18.00mm) Black
