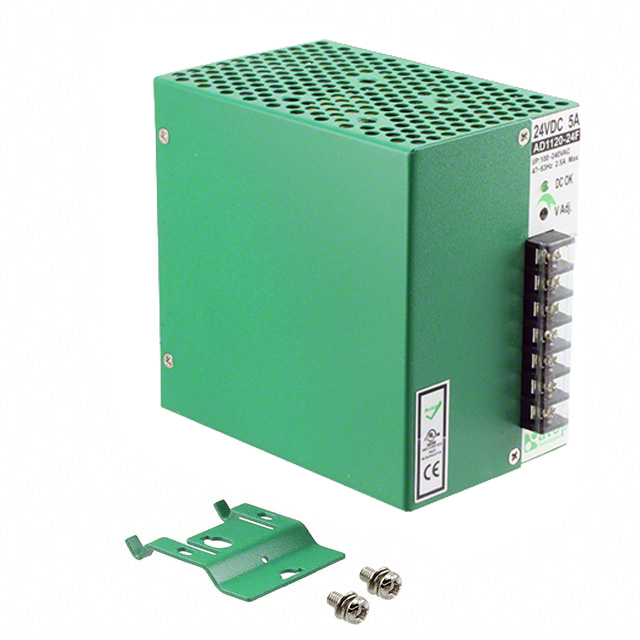

AD1120-24F

Active

ATOP Technologies

AC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

ATOP Technologies

AC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC DIN RAIL SUPPLY 24V 120W

Part	Current - Output (Max) [Max]	Voltage - Output 1	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Efficiency	Applications	Features	Input Type	Operating Temperature [Max]	Operating Temperature [Min]
ATOP Technologies AD1120-24F	5 A	24 V	1	56 mm	4.33 in	121 mm	2.2 in	4.76 "	110 mm	CB, CE, cULus	100 VAC	240 VAC	81 %	ITE (Commercial)	Adjustable Output	AC	50 °C	-20 C
ATOP Technologies AD1120-48F	2.5 A	48 V	1	75 mm	4.33 in	121 mm	2.95 in	4.76 "	110 mm	CB, CE, cULus	100 VAC	240 VAC		ITE (Commercial)	Adjustable Output	AC	50 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 85.00

General part information

AC/DC DIN RAIL SUPPLY 24V 120W
